Specification Sheet
gogreenledinternational.com
DLC PremiumETL Listed5-Year WarrantyCCT Selectable
High Bay
UFO LED High Bay
GGL-UFO12
High-output UFO LED high bay light with die-cast aluminum housing and wattage/CCT selectable options for warehouse and industrial applications.
100–300W
Wattage
145 LPW
Efficacy
3 Selectable
CCT
> 80
CRI
Key Features
Construction
Die-cast Aluminum housing with powder coat finish, UV Stabilized polycarbonate lens, Wattage and CCT selectable, Complete accessories for option.
Electrical
Lens cover: 90°, 120-277V; 277-480V, Lens IK grade: IK08 for PC lens, LED source: Lumileds.
Applications
Warehouse, factory, airport, other high bay applications.
Installation
Hook, Yoke.
Distribution
90° beam angle.
Listing
ETL & DLC.
Warranty
5 years warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-UFO12-150W/120W/100W-L | 150W (120-277V) | 100W / 120W / 150W | 14,000–21,000 lm |
| GGL-UFO12-240W/200W/150W-L | 240W (120-277V) | 150W / 200W / 240W | 21,000–33,600 lm |
| GGL-UFO12-300W/240W/200W-L | 300W (120-277V) | 200W / 240W / 300W | 28,000–42,000 lm |
| GGL-UFO12-150W/120W/100W-H | 150W (277-480V) | 100W / 120W / 150W | 14,000–21,000 lm |
| GGL-UFO12-240W/200W/150W-H | 240W (277-480V) | 150W / 200W / 240W | 21,000–33,600 lm |
Specifications
Technical Details
CCT
3000K / 4000K / 5000K (Color Tunable)
Efficacy
Up to 145 lm/W
CRI
> 80
Input Voltage
AC120-277V / AC277-480V
Operating Temp
-30°C to 50°C
Certifications
ETL, DLC
Light Distribution
90°
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-UFO11-150/120/100W-H-TCP(XX)-Y | UFO highbay, Power Switchable 100W/120W/150W, Color Switchable 3000K/4000K/5000K, 120-277VAC |
| J-GGL-UFO12-240W/200W/150W-L-(30/40/50)K-Y | UFO highbay, Power Switchable 150W/200W/240W, Color Switchable 3000K/4000K/5000K, 120-277VAC |
| J-GGL-UFO12-300W/240W/200W-L-(30/40/50)K-Y | UFO highbay, Power Switchable 200W/240W/300W, Color Switchable 3000K/4000K/5000K, 120-277VAC |
| GGL-UFO12-150W/120W/100W-H-(30/40/50)K-Y | UFO highbay, Power Switchable 100W/120W/150W, Color Switchable 3000K/4000K/5000K, 277-480VAC |
| GGL-UFO12-240W/200W/150W-H-(30/40/50)K-Y | UFO highbay, Power Switchable 150W/200W/240W, Color Switchable 3000K/4000K/5000K, 277-480VAC |
Dimensions
Physical Dimensions

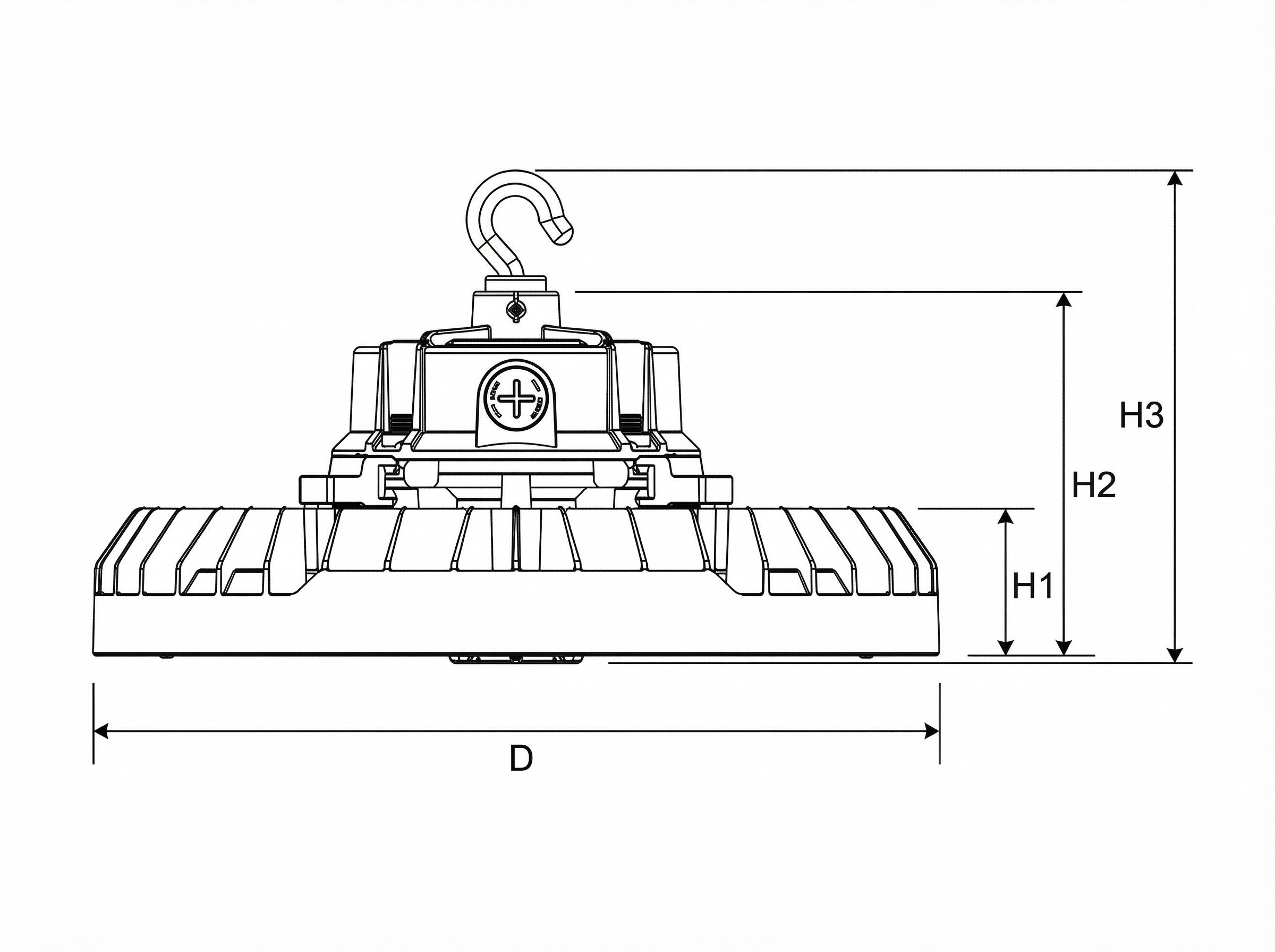

Dimension Drawing
Dimensions Table
| Size / Model | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| 150W | Ø9.45" (240mm) | Ø9.45" (240mm) | 5.08" (129mm) |
| 240W | Ø11.81" (300mm) | Ø11.81" (300mm) | 5.08" (129mm) |
| 300W | Ø13.39" (340mm) | Ø13.39" (340mm) | 5.08" (129mm) |
Installation
Installation Instructions
1
Attach the hook or yoke mount bracket to the fixture.
2
Suspend from ceiling using chain, cable, or direct hook mount.
3
Connect wiring: black to black, white to white, green to ground.
4
Install sensor (if applicable) into the sensor port.
5
Restore power and verify operation.
Mounting Options
Suspension (Hook)
Suspension installation with chain or hook.
Surface Mounting (Bracket)
Surface mounting with bracket.
Pipe Installation
Pipe installation (Factory).
Accessories
Available Accessories
PC Reflector
Polycarbonate reflector for focused beam distribution.
Safety Rope
Safety rope for secondary suspension support.
U Bracket
U bracket for surface mounting.
Sensor
Optional motion sensor accessory.
Emergency Backup
Optional emergency backup battery accessory.
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| GGL-UFO12-150W (120-277V) | 9.84" x 9.84" x 5.91" | 1 pc | 5.73 lbs | — |
| GGL-UFO12-240W (120-277V) | 12.2" x 12.2" x 5.91" | 1 pc | 6.7 lbs | — |
| GGL-UFO12-300W (120-277V) | 14.17" x 14.37" x 15.35" | 1 pc | 16.5 lbs | — |
| GGL-UFO12-150W (277-480V) | 9.84" x 9.84" x 12" | 2 pcs | 11 lbs | — |
| GGL-UFO12-240W (277-480V) | 12.2" x 12.2" x 12" | 2 pcs | 12 lbs | — |
