Full Cutoff & Dark Sky Compliant LED Wall Packs
Zero uplight, no light trespass, DLC Premium rebates. Built for properties that must meet municipal or HOA lighting ordinances.
The problem with standard wall packs
- They throw light upward and sideways, into the sky and into neighboring windows.
- Glare and light trespass are exactly what municipal and HOA lighting ordinances cite.
- Every lumen aimed at the sky is energy you paid for and cannot use.
The fix: full cutoff optics
- Full cutoff housings emit zero light above the horizontal. Everything lands on your property.
- That is the standard most dark-sky and outdoor-lighting ordinances are written around.

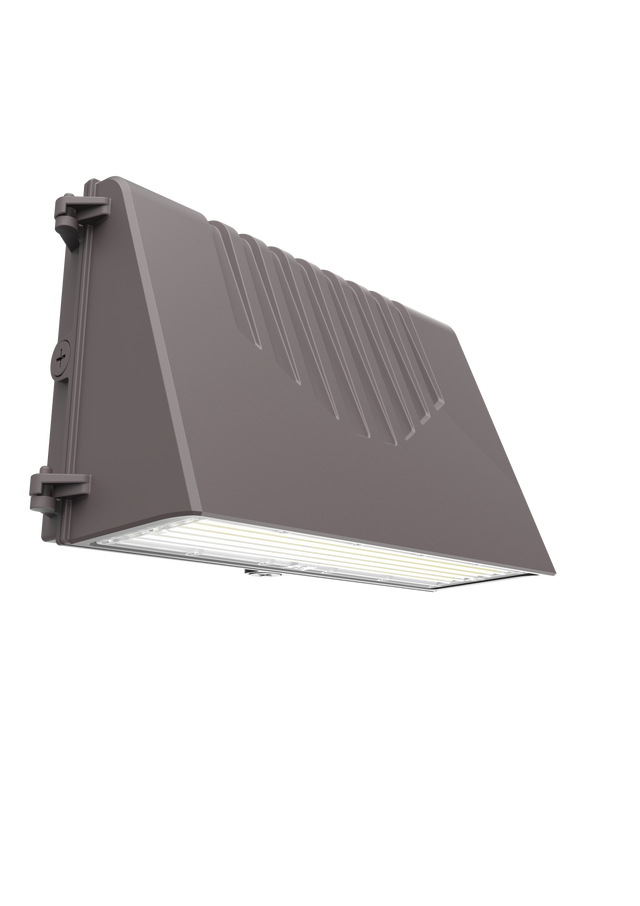

- The WP11F is full cutoff and DLC Premium, so it also qualifies for utility rebates.
Put every lumen on the ground where you need it, and pass the lighting ordinance while you are at it.
What full cutoff actually means
Wall packs differ in where they let light go. The housing decides, not the bulb.
Standard wall pack
Light escapes above the horizontal into the sky and sideways into neighboring lots. Bright, but this is the glare ordinances are written against.
Forward throw (Type IV)

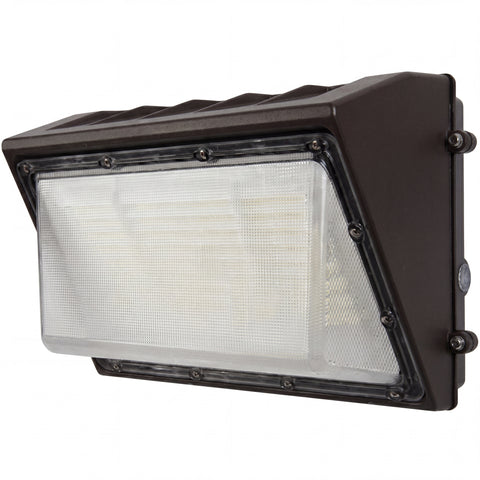

Pushes light out and away from the wall to cover pathways and perimeter. Our WP09 is Type IV: reach without the uplight of an old-style flood.

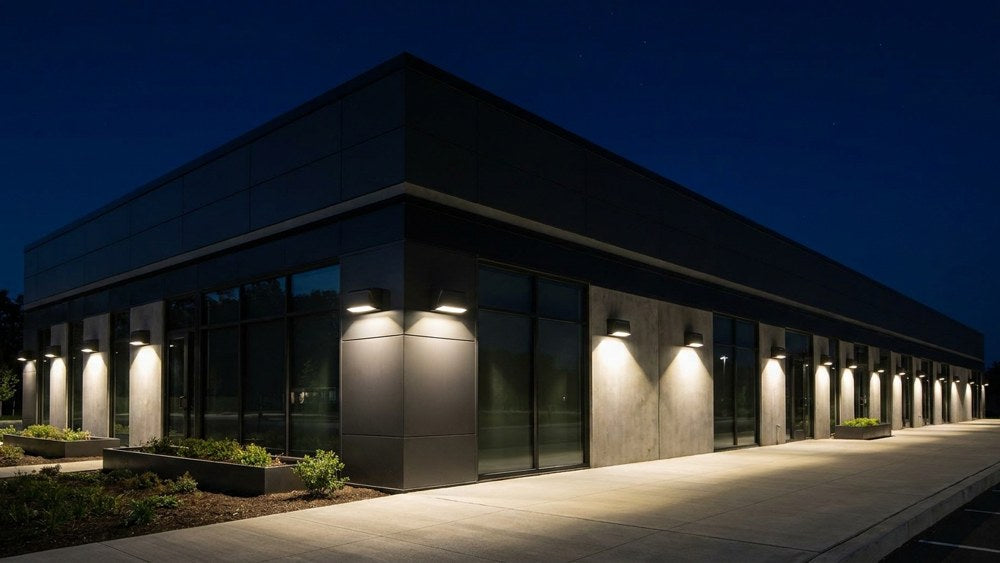

Full cutoff
Zero light above the horizontal plane of the fixture. Everything lands on the wall and ground below. This is what dark-sky ordinances ask for.
Where you will be asked for it
More and more jurisdictions regulate outdoor lighting. If any of these apply to your property, spec full cutoff from the start instead of replacing fixtures after a citation.
Lighting a parking lot too? Pair wall packs with our LED shoebox area lights and keep the whole site on one ordinance-friendly spec.
The Lineup
The full cutoff pick, and its family
All wet-location rated, wattage and CCT selectable, backed by a 5-year warranty and US inventory.
Wall pack comparison

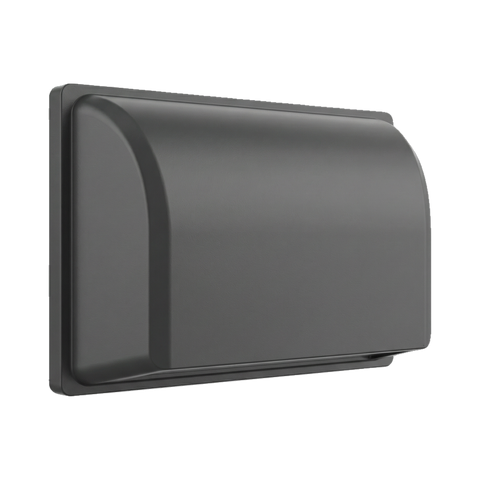

| Spec | WP11F Full Cutoff | WP09 | Mini Wall Pack |
|---|---|---|---|
| Optics | Full cutoff, zero uplight | Type IV forward throw | Compact standard |
| Best for | Ordinance and dark-sky sites | Pathways and perimeter reach | Entries and doorways |
| Wattage | 60-120W selectable | 60-120W selectable | 30W selectable |
| Photocell | Dusk to dawn | Dusk to dawn | Selectable (DIP) |
| Motion option | Microwave sensor available | No | No |
| Listing | UL + DLC Premium | Listed, wet location | Listed, weatherproof |
| Price | from $67.62 | from $64.40 | from $27.72 |
Only the WP11F is full cutoff. If an ordinance applies to your property, that is the one to spec.
Backed for commercial exteriors
Manufacturing commercial and industrial LED since 2004. The WP11F is UL listed and DLC Premium, rated IP65 for wet locations from -40°C to +50°C, with 6KV surge protection and a 5-year warranty. Ships from US inventory.
Full cutoff wall pack FAQ
What does full cutoff mean?
Is the WP11F dark-sky compliant?
Are photocell, motion sensor, or battery backup options available?
What old fixture does it replace?
Can it be installed in wet locations?
What voltage does it run on, and is installation difficult?
Ready to pass the lighting ordinance?
Shop the full cutoff WP11F and its family, or send your fixture counts and the ordinance below and we will spec the compliant configuration for your building.
Relighting a whole property? Contractors get volume pricing and Net 30 terms.
