Specification Sheet
gogreenledinternational.com
DLC PremiumETL Listed5-Year Warranty0-10V DimmingCCT Selectable
Industrial

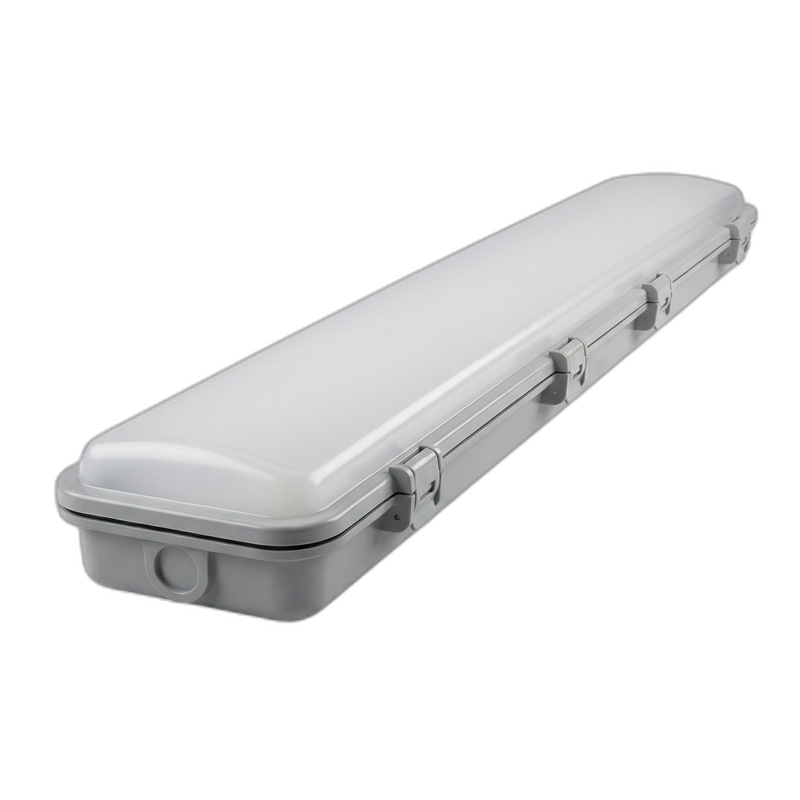

LED Vapor Tight Light
GGL-tp4f-L50
Whole PC material body with excellent stress and UV resistance. Waterproof, dust-proof and anti-corrosion. 4FT and 8FT options.
25–80W
Wattage
125 LPW
Efficacy
5 Selectable
CCT
IP65
IP
Key Features
Construction
Whole PC material body, excellent stress and UV resistance. Waterproof, dust-proof and anti-corrosion. 4FT and 8FT Options.
Electrical
Input Voltage: 120-277Vac. IP65 waterproof grade. Wattage and CCT tunable. High lumen efficient 125lm/W on average. Motion sensor, emergency function for option.
Applications
Offices, retail, supermarket, schools, subway & train station, warehouse, healthcare, residential, and hospitality applications.
Installation
Hanging and ceiling installation.
Listing
Comply with the requirements of the Standard(s) for Luminaires (CAN/CSA-C22.2 No.250.0) and are identified with the cETL.
Warranty
5-year limited warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-tp4f-L50 | 4FT | 25W / 30W / 35W / 40W / 50W | Up to 6,250 lm |
| GGL-tp8f-s80 | 8FT | 40W / 50W / 60W / 70W / 80W | Up to 10,000 lm |
Specifications
Technical Details
CCT
3500K / 4000K / 5000K / 5700K / 6500K (5CCT Selectable)
Efficacy
125 lm/W
CRI
> 80
Input Voltage
120-277V AC
Operating Temp
-20°C to 45°C
IP Rating
IP65
Certifications
ETL, DLC 5.1 Premium (4FT) / ETL (8FT)
Dimming
0-10V compatible
Warranty
5 Years
Sensor Solutions
Motion Sensor
Motion / PIR sensor (multiple sensor solutions)
Emergency Solutions
EM Emergency Backup
Emergency backup for power outage protection.
Dimensions
Physical Dimensions

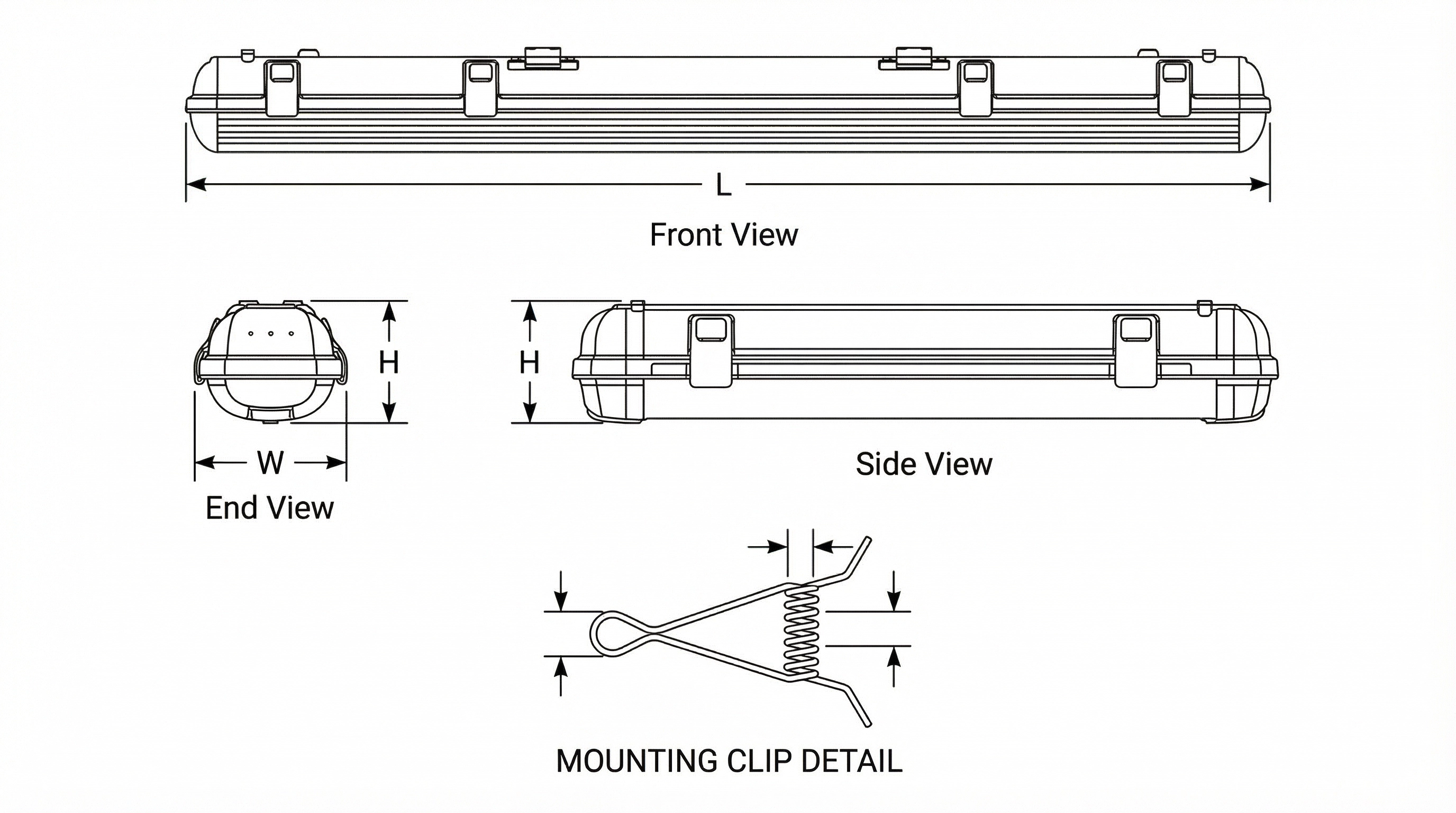

Dimension Drawing
Dimensions Table
| Size / Model | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| 4FT | 47" (1200mm) | 3.74" (95mm) | 3.15" (80mm) |
| 8FT | 94" (2400mm) | 3.74" (95mm) | 3.31" (84mm) |
Installation
Installation Instructions
1
Mount the fixture base to the ceiling or wall using the provided mounting hardware.
2
Connect wiring through the knockout: black to black, white to white, green to ground.
3
Snap the polycarbonate lens cover onto the base using stainless steel clips.
4
For linkable installations, connect fixtures end-to-end.
5
Restore power and verify operation.
Mounting Options
Surface Mounting
Direct surface mount to ceiling or wall.
Accessories
Available Accessories
Metal Clips
Stainless steel material, 2pcs for 4FT light, 4pcs for 8FT light.
Connection Terminal
Waterproof IP65, leads the connection wires inside the lamp.
Metal Hook
Stainless steel material, for hanging light, 2pcs for 4FT, 4pcs for 8FT.
Screws Bag
All the screws used for installation are packed in this bag.
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| VT02-4FT | 47.83" × 12.6" × 7.87" | 6 pcs | 14 lbs | — |
| VT02-8FT | 94.88" × 12.64" × 8.46" | 6 pcs | 28.59 lbs | — |
