Specification Sheet
gogreenledinternational.com
DLC PremiumUL Listed5-Year Warranty0-10V DimmingCCT Selectable
Outdoor Lighting
LED Wall Pack
GGL-WP09-120W-S4W3C
High-output LED wall pack with wattage and CCT selectable options. Die-cast aluminum housing with Type IV beam angle. IP65 rated.
60–120W
Wattage
150 LPW
Efficacy
3 Selectable
CCT
≥ 80
CRI
Key Features
Construction
Die-cast aluminum housing, thermoset polyester powder coat with a dark bronze finish. The Borosilicate prismatic glass version provides a durable lifetime. Tempered Glass.
Electrical
Input Voltage: 120-277Vac 50/60Hz. High efficacy up to 150 lm/W. 3CCT (3000/4000/5000K) and 4 wattages selectable offer SKU reduction. Power Switchable between 60W/90W/100W/120W. Beam Angle: Type IV. Automated dusk-to-dawn photocell functionality.
Applications
Pathway, Building entryways, Perimeter lighting.
Installation
Wall mount. Ideal for mounting to any vertical surface and attaches to a J-box, can be surface mounted using the conduit entry points on all four sides of the housing enclosure hinges open for easy installation and maintenance.
Listing
UL Listed. IP65, completely waterproof and dustproof. DesignLights Consortium® (DLC) Premium. Operating temperatures: -40°C to 45°C.
Warranty
5 years warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-WP09-120W-S4W3C | 120W | 60W / 90W / 100W / 120W | 9,000–18,000 lm |
Specifications
Technical Details
CCT
3000K / 4000K / 5000K (Switchable)
Efficacy
Up to 150 lm/W
CRI
≥ 80
Input Voltage
120-277Vac 50/60Hz
Operating Temp
-40°C to 45°C
Certifications
UL, DLC 5.1 Premium
Dimming
0-10V
IP Rating
IP65
Light Distribution
Type IV
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-WP09-120W-S4W3C | WP09 Wall Pack, 60W/90W/100W/120W, L=AC120-277Vac, Bronze Finish with Photocell, Color Switchable 3000K/4000K/5000K |
Sensor Solutions
GGL-ANT-5-ZT
Microwave Sensor (Factory available)
Emergency Solutions
BLD-CM15N
15W Emergency (Factory available)
Dimensions
Physical Dimensions

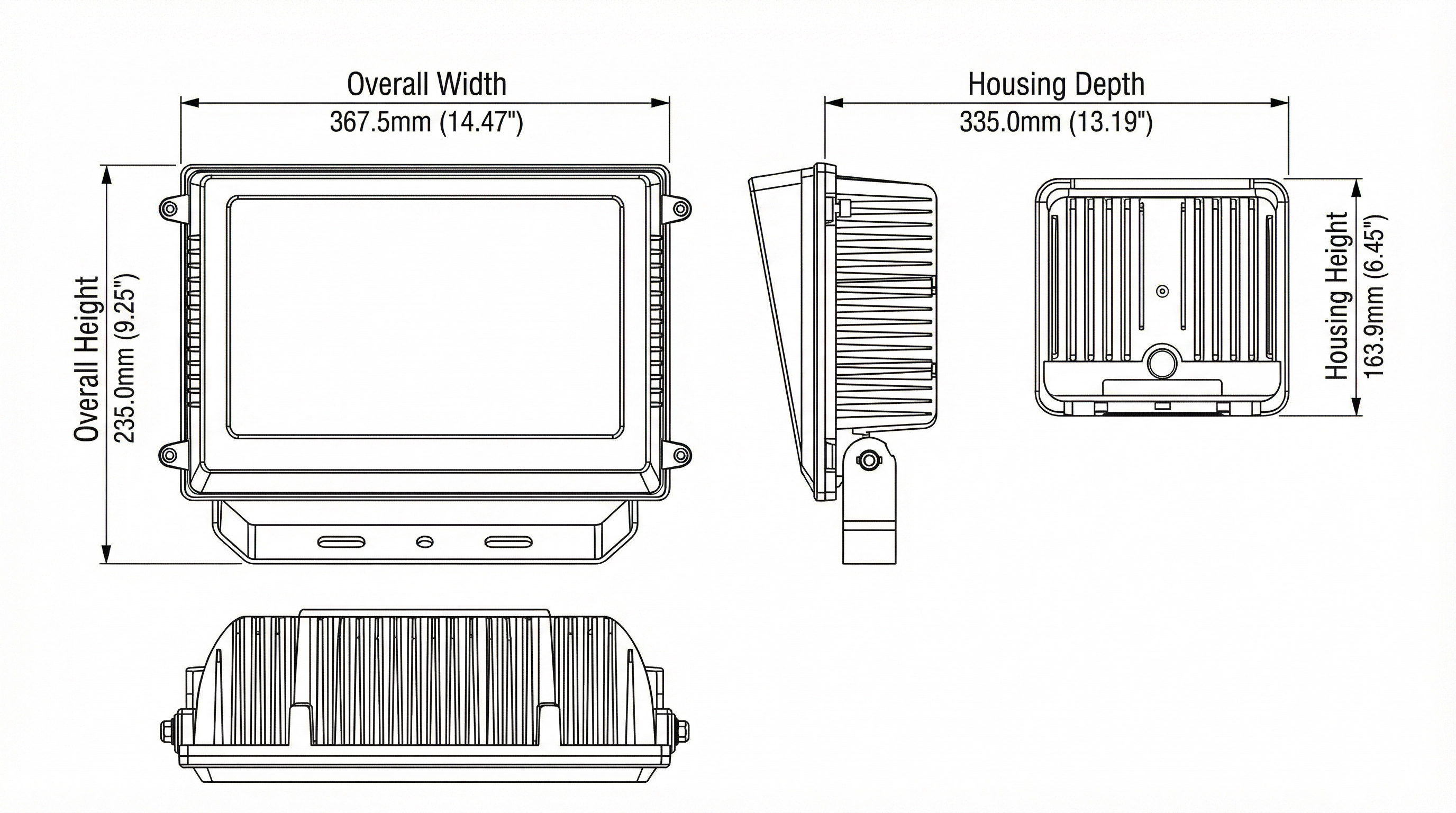

Dimension Drawing
Dimensions Table
| Size / Model | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| 10" | 10.04" (255mm) | 8.86" (225mm) | 6.11" (155.3mm) |
| 14" | 14.47" (367.5mm) | 9.25" (235mm) | 6.45" (163.9mm) |
| 18" | 18.72" (475.6mm) | 9.28" (235.6mm) | 6.42" (163.1mm) |
Installation
Installation Instructions
1
Mount the wall plate to the junction box or wall surface.
2
Connect wiring: black to black, white to white, green to ground.
3
Attach the fixture to the wall plate using the provided hardware.
4
Install photocell (if applicable) into the twist-lock receptacle.
5
Restore power and verify operation.
Mounting Options
Wall Mount
Surface mount to wall or junction box. Mounting hardware included.
Accessories
Available Accessories
Glare Shield
Glare shield (Factory available).
Wire Guard
Wire guard (Factory available).
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| GGL-WP09-120W-S4W3C | 15" × 11.8" × 7.5" | 1 pc | 9.1 lbs | — |
