Specification Sheet
gogreenledinternational.com
DLC PremiumUL Listed5-Year Warranty0-10V DimmingCCT Selectable
Outdoor Lighting
LED Wall Pack Full Cutoff
GGL-WP11
Full cutoff LED wall pack with die-cast aluminum housing and polycarbonate lens. High efficacy up to 160lm/W. IP65 rated with Type III distribution.
60–120W
Wattage
160 LPW
Efficacy
3 Selectable
CCT
> 80
CRI
Key Features
Construction
Housing: Die-cast Aluminum. Lens: Polycarbonate. Easy to install and operate.
Electrical
High efficacy up to 160lm/W. AC120-277V. 0-10V dimming. Surge Protection: 6KV. CCT & Wattage Selectable. Light Distribution: Type III. Waterproof: IP65 rated.
Applications
Factory, Warehouse, Walkways, Hallways, Outdoor Commercial, Outdoor Residential.
Installation
Microwave motion sensor and emergency driver available. Automated Dusk to Dawn photocell functionality. Wall Mount. Five 1/2" knockouts: one on each side for convenient installation.
Warranty
5 years warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-WP11F-120W-S4W3C | 120W | 60W / 90W / 100W / 120W | max. 19,200 lm |
Specifications
Technical Details
CCT
3000K / 4000K / 5000K (Tunable)
Efficacy
Up to 160 lm/W
CRI
> 80
Input Voltage
120-277V
Operating Temp
-40°C to +50°C
Certifications
UL, DLC Premium
Dimming
0-10V
IP Rating
IP65
Surge Protection
6KV
Light Distribution
Type III
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-WP11F-120W-S4W3C | WP11F Series, 60W/90W/100W/120W, L=AC120-277Vac, H=AC277-480Vac, T3=Type III, 3000K/4000K/5000K |
Dimensions
Physical Dimensions

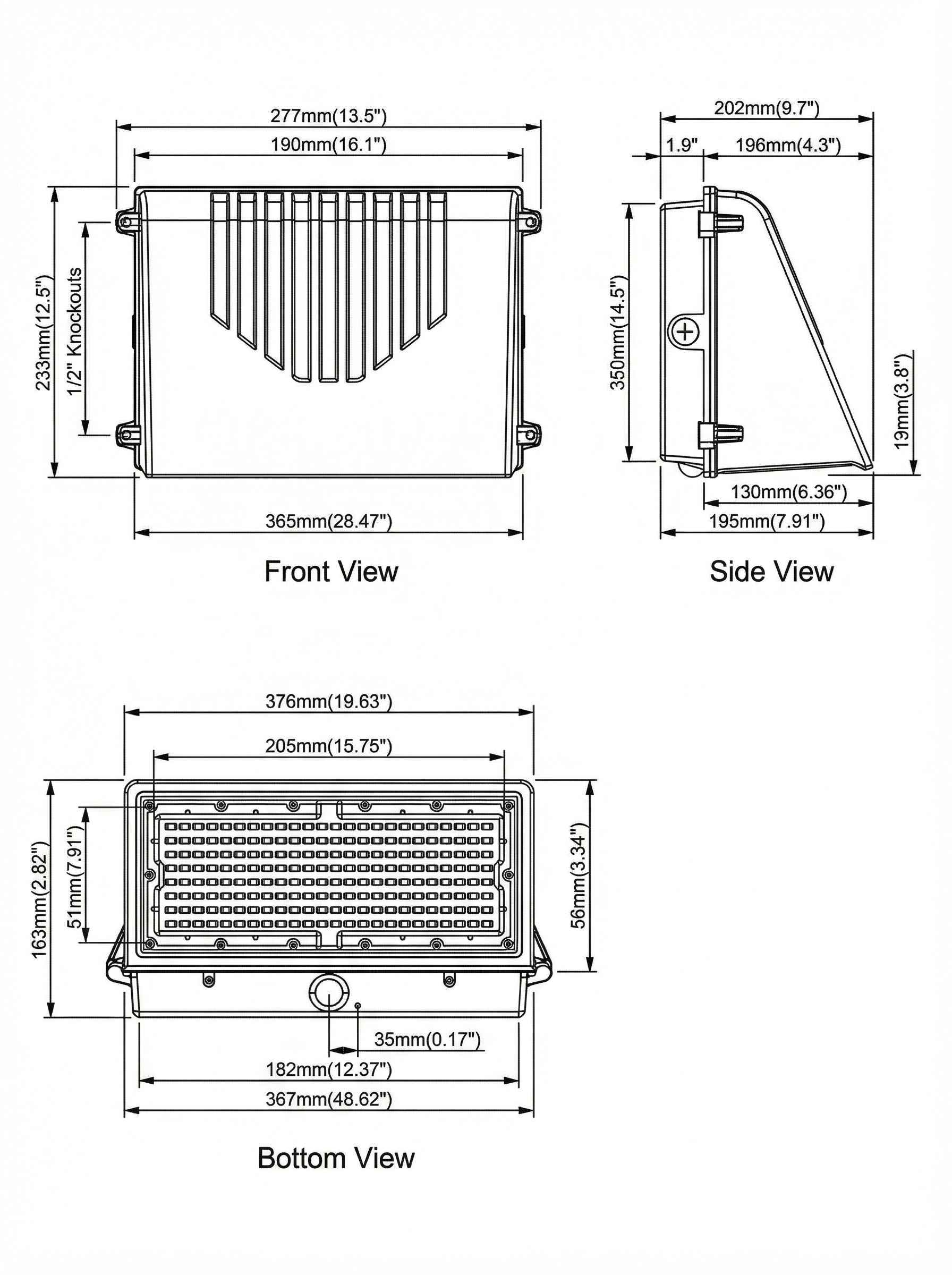

Dimension Drawing
Dimensions Table
| Size / Model | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| WP11F-120W | 14.48" (367.8mm) | 9.25" (235mm) | 6.44" (163.7mm) |
Installation
Installation Instructions
1
Mount the wall plate to the junction box or wall surface.
2
Connect wiring: black to black, white to white, green to ground.
3
Attach the fixture to the wall plate using the provided hardware.
4
Install photocell (if applicable) into the twist-lock receptacle.
5
Restore power and verify operation.
Mounting Options
Wall Mount
Surface mount to wall or junction box.
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| GGL-WP11F-120W | 16.73" × 11.42" × 8.54" | 1 pc | 7.7 lbs | — |
