Specification Sheet
gogreenledinternational.com
UL ListedDLC Premium5-Year Warranty0-10V Dimming
Garage / Utility

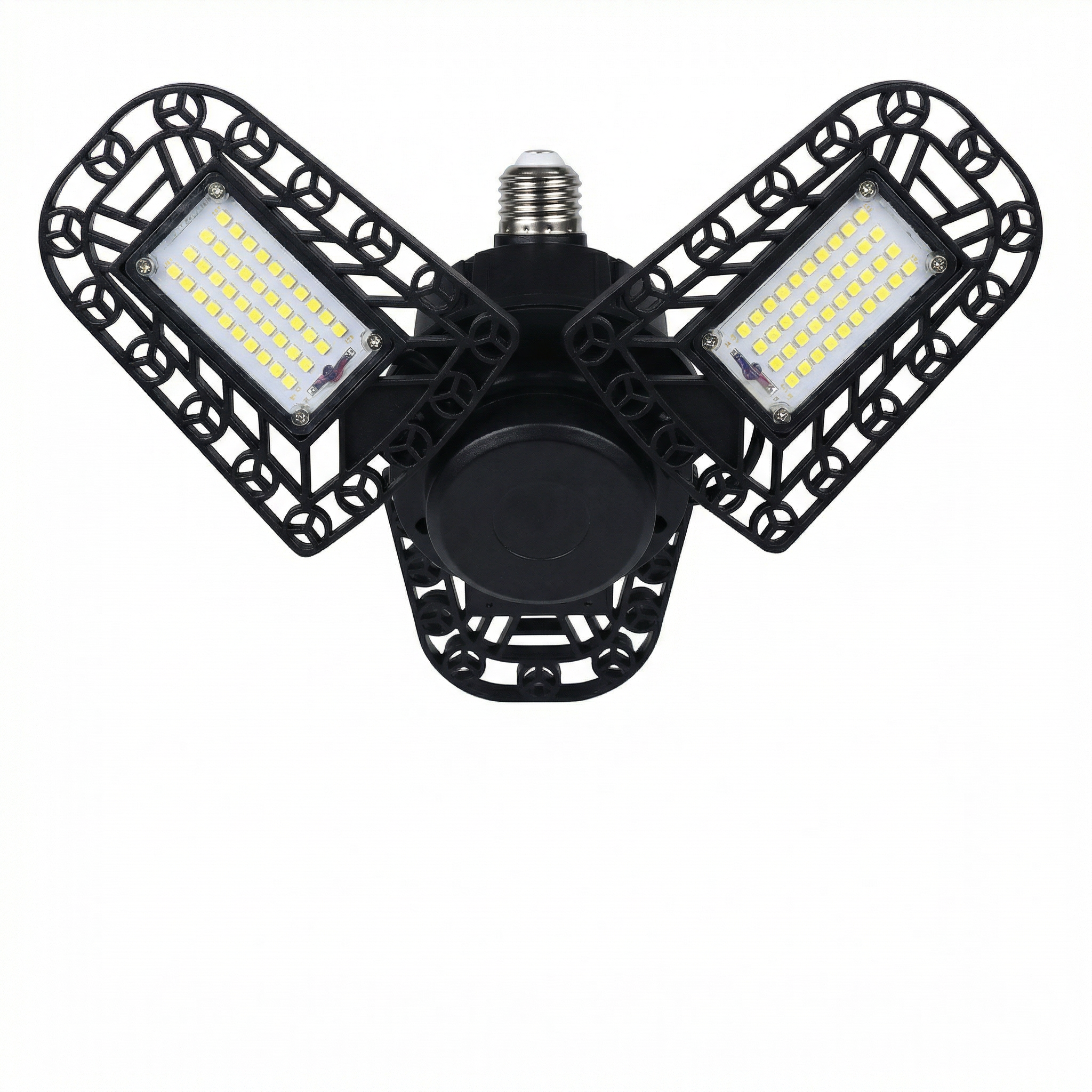

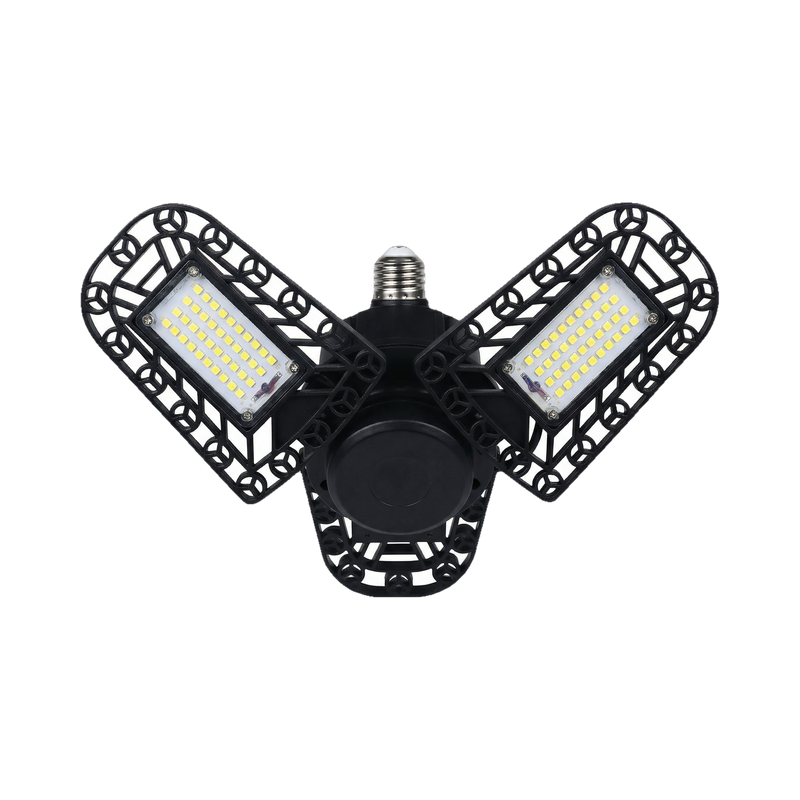

LED Deformable Lamp (3-Panel)
GGL-DAL-60W
High-brightness 3-panel deformable LED garage lamp with E26/E27 base. Adjustable panels for omnidirectional illumination. Pure aluminum housing with IP64 rating.
60W
Wattage
130 LPW
Efficacy
2700–6500K
CCT
> 80
CRI
Key Features
Construction
Pure aluminum housing (PC+AL). Deformable 3-panel design with free-transform angle of illumination. 120° beam angle, omnidirectional regulation. Housing color: Black + White. Cover: Clear/Frosted.
Electrical
Input Voltage: AC100-277V 50/60Hz. 0-10V Dimmable. Surge voltage: 2000V. LED source: 168pcs Epistar SMD 2835 0.5W. Lumen output: >7,800 LM.
Applications
Warehouse, Garage, Workshop and similar applications.
Installation
E26/E27 or E39/E40 screw-in base. Direct replacement for existing lamp holders. Bypass ballast/ignitor and connect directly to AC 100-277V.
Listing
UL (E478324), DLC, CE, RoHS, FCC, PSE, SAA.
Warranty
5 years warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-DAL-60WX9F-CC | 60W | 60W | > 7,800 lm (130 lm/W) |
Specifications
Technical Details
CCT
2700K–6500K
Efficacy
130 lm/W
CRI
> 80
Input Voltage
AC100-277V 50/60Hz
Operating Temp
-40°C to 55°C
IP Rating
IP64
Certifications
UL, DLC, CE, RoHS, FCC, PSE, SAA
Dimming
0-10V
Power Factor
> 0.9
Base
E26/E27 or E39/E40
Surge Protection
2000V
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-DAL-60WX9F-CC | DAL 3-Panel Deformable Lamp, 60W, E26/E27 or E39/E40 base, 130lm/W, 2700K-6500K, 0-10V Dimmable |
Dimensions
Physical Dimensions
Dimension Drawing
Dimensions Table
| Size / Model | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| 60W | Ø10.63" (270mm) | Ø10.63" (270mm) | 4.53" (115mm) |
Installation
Installation Instructions
1
Switch off power to the luminaire.
2
Remove old ballast or disconnect from existing lamp holder. Dispose of ballast per local environmental laws.
3
Remove existing lamps.
4
Bypass the ballast/ignitor and connect the lamp-holder wires directly to AC 100-277V, 50/60Hz. Ensure proper grounding.
5
Screw in new bulb into the lamp-holder firmly.
6
Switch on power.
Mounting Options
Screw-In Base (E26/E27)
Direct screw-in replacement for standard medium base lamp holders.
Mogul Base (E39/E40)
Screw-in replacement for mogul base lamp holders in high-bay applications.
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| GGL-DAL-60WX9F-CC | 20.5" × 15.0" × 17.9" (520 × 380 × 455mm) | 18 pcs | 30.9 lbs (14 kg) | — |
