Specification Sheet
gogreenledinternational.com
DLC PremiumETL Listed5-Year Warranty0-10V DimmingCCT Selectable
Indoor Lighting

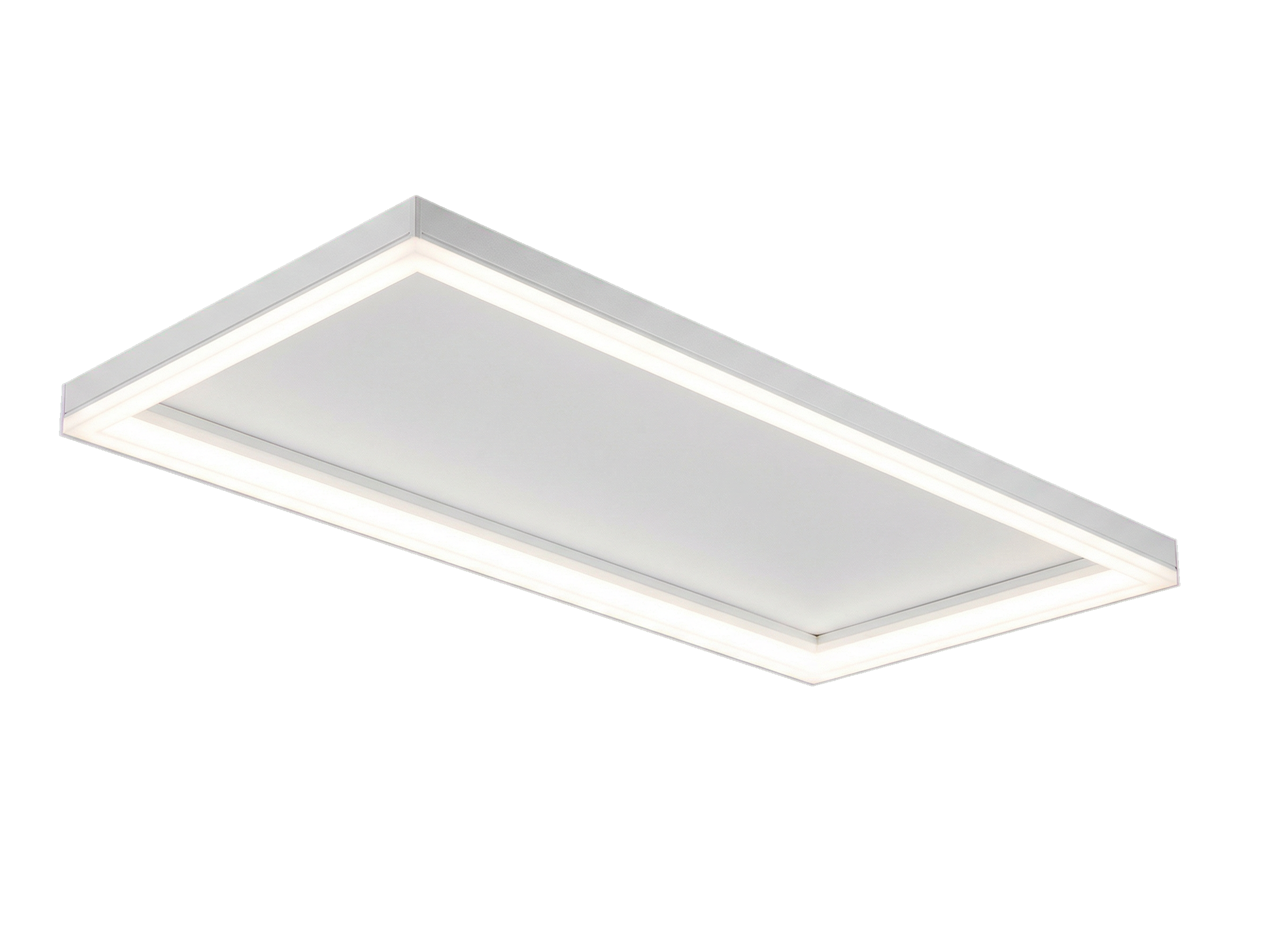

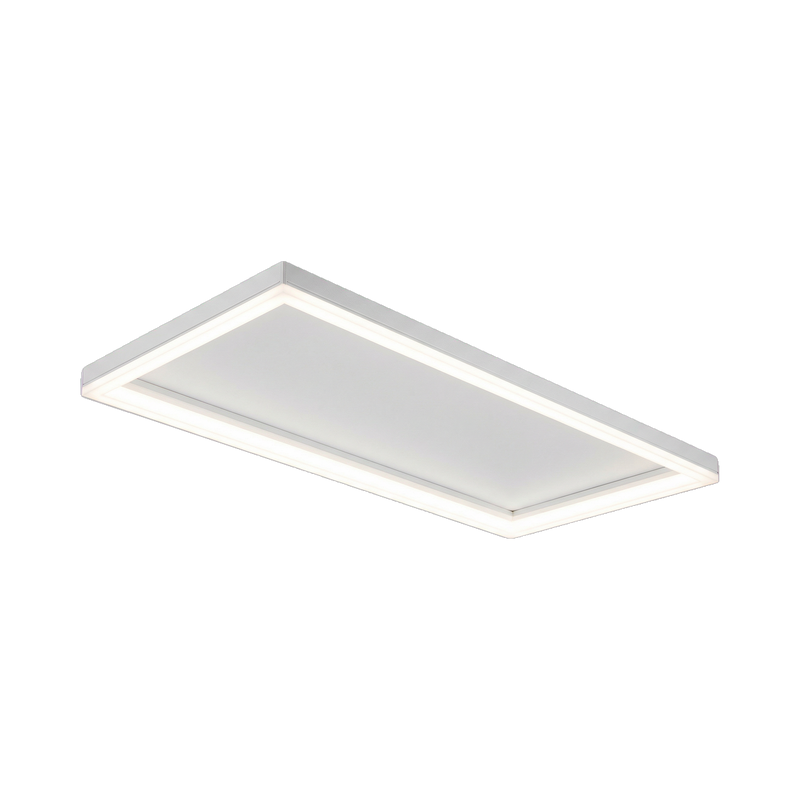

LED Frame Light
GGL-B2-B4
Edge-lit LED frame light with elegant illuminated border design. Available in 2×2 and 2×4 sizes with CCT and wattage selectable.
20–60W
Wattage
130 LPW
Efficacy
5 Selectable
CCT
> 80
CRI
Key Features
Construction
Edge-lit frame design with illuminated perimeter border. Aluminum frame with frosted acrylic diffuser. CCT and wattage selectable via DIP switches.
Electrical
Input Voltage: 120-277VAC, 50/60Hz. 0-10V dimming. Power factor ≥ 0.9, THD < 20%.
Applications
Modern offices, conference rooms, lobbies, retail, and architectural accent lighting.
Emergency
Compatible with emergency LED drivers (8W, 15W, 25W options).
Listing
ETL listed. DesignLights Consortium (DLC) Premium.
Warranty
5-year limited warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-B2-S40-3065 | 2' × 2' | 20W / 30W / 40W | Up to 5,200 lm |
| GGL-B4-S72-3065 | 2' × 4' | 40W / 50W / 60W | Up to 7,800 lm |
Specifications
Technical Details
CCT
3000K / 3500K / 4000K / 5000K / 6500K (Switchable)
Efficacy
Up to 130 LPW
CRI
> 80
Input Voltage
120–277VAC, 50/60Hz
Dimming
0-10V
Operating Temp
-20°C to 50°C
Lifespan
50,000 hrs (L70)
Certifications
ETL, DLC Premium
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-B2-S40-3065 | 2' × 2' Frame Light, Power Switchable 20W/30W/40W, CCT 3000K/3500K/4000K/5000K/6500K |
| GGL-B4-S72-3065 | 2' × 4' Frame Light, Power Switchable 40W/50W/60W, CCT 3000K/3500K/4000K/5000K/6500K |
Emergency Solutions
BLD-HM08D / BLD-HM15D / BLD-HM25D
Emergency LED Driver, 8W / 15W / 25W options, 90-Min Battery
Dimensions
Physical Dimensions
Dimensions Table
| Size / Model | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| 2' × 2' | 23.7" | 23.7" | 2.0" |
| 2' × 4' | 47.7" | 23.7" | 2.0" |
Installation
Installation Instructions
1
Lift frame light into the T-bar ceiling grid opening.
2
Secure using integrated spring clips on each side.
3
Connect wiring: white to neutral, black to line, green to ground.
4
Set CCT and wattage using DIP switches on the driver.
5
If using emergency driver, connect per emergency driver instructions.
6
Close junction box and restore power.
Mounting Options
Recessed T-Bar
Drop into standard T-bar ceiling grid.
Surface Mount
Use optional surface mount kit for hard-lid ceilings.
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| GGL-B2-S40-3065 | 25 × 8 × 24 in | 6 | — | — |
| GGL-B4-S72-3065 | 47 × 8 × 24 in | 6 | — | — |
