Specification Sheet
gogreenledinternational.com
DLC PremiumUL Listed5-Year Warranty0-10V DimmingCCT Selectable
Outdoor Lighting

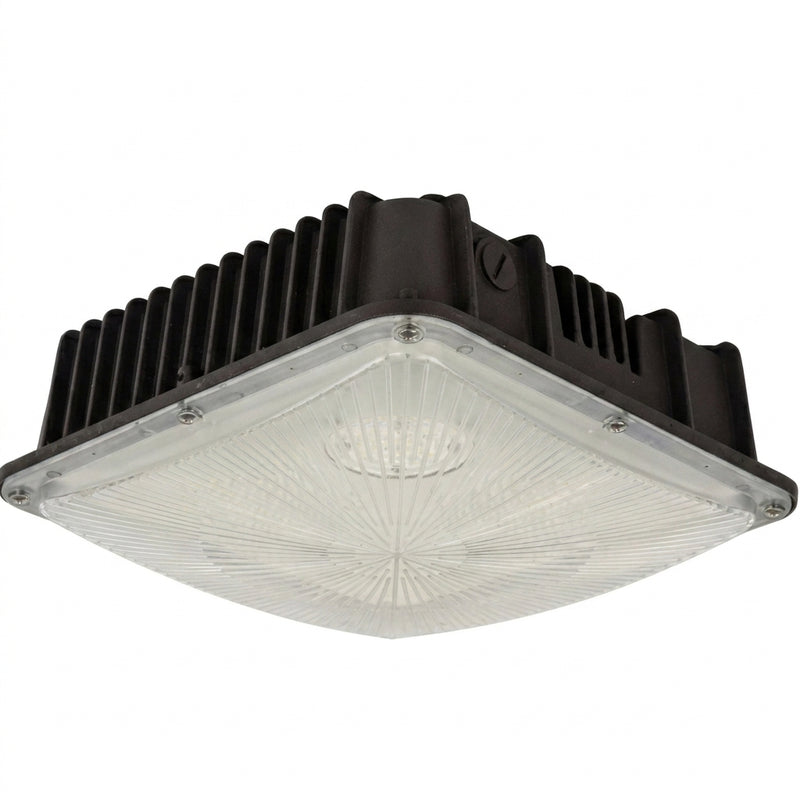

LED Garage Canopy Light
GGL-CP75W-CS-3CCT-A
Wattage-adjustable LED canopy light with built-in PIR sensor base for parking garages, covered walkways, and building entrances.
40–75W
Wattage
>135 LPW
Efficacy
3 Selectable
CCT
IP65
IP Rating
Key Features
Construction
Die-cast aluminum housing with frosted prismatic lens. IP65 rated for wet locations. Integrated sensor base for PIR motion detection.
Electrical
Input Voltage: 120-277VAC, 50/60Hz. 0-10V dimming. Power factor ≥ 0.9, THD < 20%.
Sensor
Compatible with GGL-ANT-6-4T PIR sensor and HD09VR-PH HAISEN PIR sensor with daylight priority/harvesting.
Applications
Parking garages, covered walkways, building entrances, canopies, and covered outdoor areas.
Listing
UL listed. DesignLights Consortium (DLC) 5.1.
Warranty
5-year limited warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-CP75W-CS-3CCT-A | Standard | 40W / 60W / 75W | 5,400 / 8,100 / 10,125 lm |
Specifications
Technical Details
CCT
3000K / 4000K / 5000K (Switchable)
Efficacy
> 135 LPW
CRI
> 80
Input Voltage
120–277VAC, 50/60Hz
Dimming
0-10V
IP Rating
IP65
Operating Temp
-20°C to 50°C
Lifespan
50,000 hrs (L70)
Certifications
UL, DLC 5.1
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-CP75W-CS-3CCT-A | Garage Canopy Light, Wattage Adjustable 40W/60W/75W, CCT 3000K/4000K/5000K, Sensor Base |
Sensor Solutions
GGL-ANT-6-4T
PIR Sensor, Detection Area 100%
HD09VR-PH (HAISEN)
PIR Sensor with Daylight Priority/Harvesting, 3-PIN
Installation
Installation Instructions
Mounting Options
Surface Mount
Mount directly to canopy ceiling surface.
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| GGL-CP75W-CS-3CCT-A | 17.3 × 12 × 12 in | 4 | 23.06 lbs | — |
