Specification Sheet
gogreenledinternational.com
UL Listed5-Year Warranty
LED Tubes

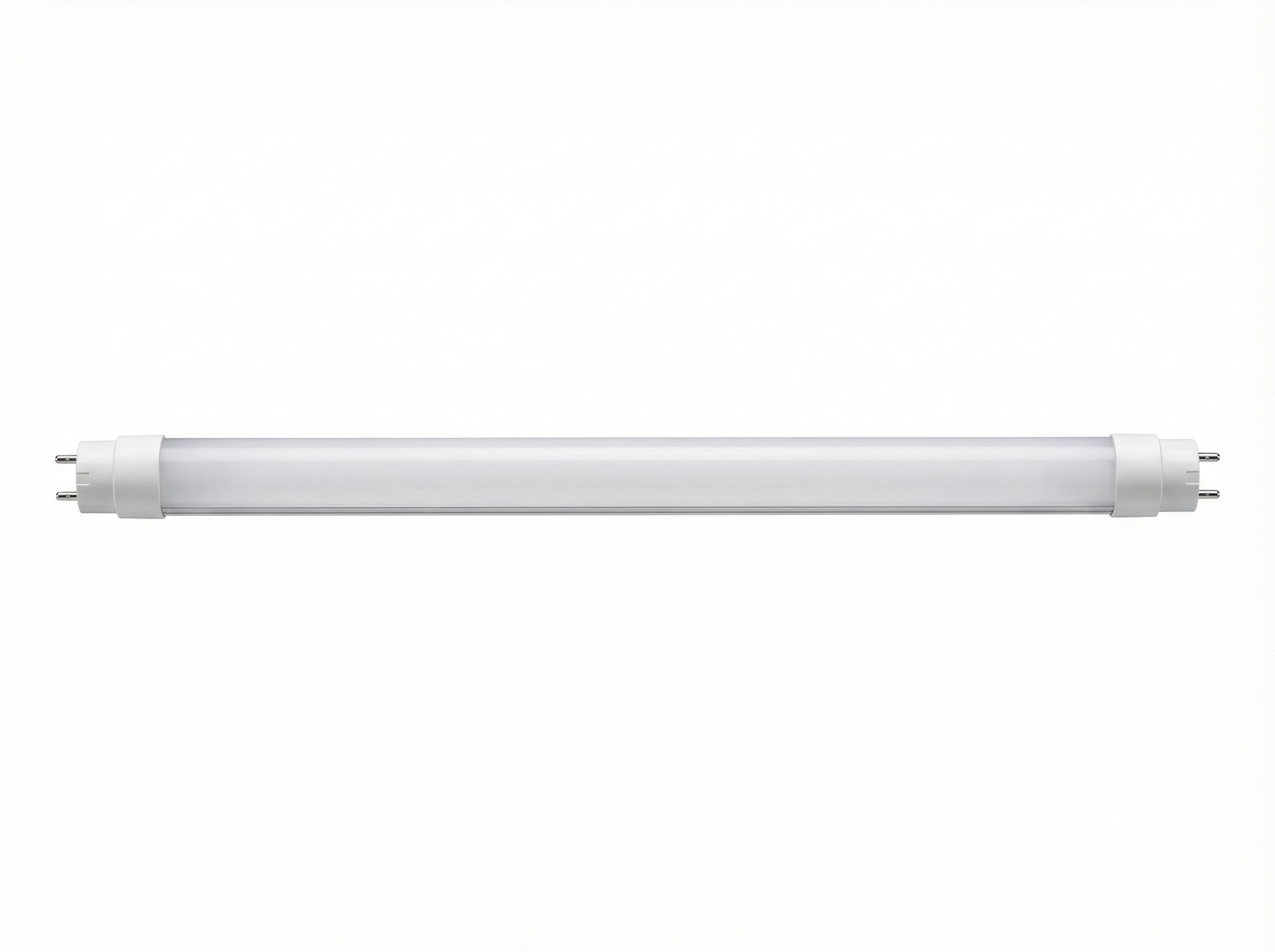

T5 LED Tube Bypass Series
GGL-TF24
T5 LED bypass tube with high efficacy over 150 LPW. Direct wire installation for maximum energy savings.
24W
Wattage
>150 LPW
Efficacy
4000K / 5000K
CCT
180°
Beam
Key Features
Construction
Polycarbonate tube with milky frosted cover. G5 miniature bi-pin base. 180° beam angle for wide light distribution.
Electrical
Input Voltage: 120-277VAC, 50/60Hz. Direct wire bypass — ballast must be removed.
Applications
Offices, retail, schools, hospitals, and any application using standard 4FT T5 fluorescent fixtures.
Listing
UL listed.
Warranty
5-year limited warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-TF24-YY-4K | 4FT | 24W | 3,600 lm |
| GGL-TF24-YY-5K | 4FT | 24W | 3,600 lm |
Specifications
Technical Details
CCT
4000K / 5000K
Efficacy
> 150 LPW
CRI
> 80
Input Voltage
120–277VAC, 50/60Hz
Base
G5 Miniature Bi-Pin
Cover
Milky Frosted
Beam Angle
180°
Type
Bypass (Direct Wire)
Lifespan
50,000 hrs (L70)
Certifications
UL
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-TF24-YY-4K | 4FT T5 Bypass Tube, 24W, 4000K, Milky Cover, G5 |
| GGL-TF24-YY-5K | 4FT T5 Bypass Tube, 24W, 5000K, Milky Cover, G5 |
Installation
Installation Instructions
1
Turn off power and remove existing fluorescent T5 tube.
2
Disconnect and remove existing ballast (bypass required).
3
Wire line voltage directly to the socket at one end.
4
Insert LED tube into G5 sockets.
5
Restore power and verify operation.
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|

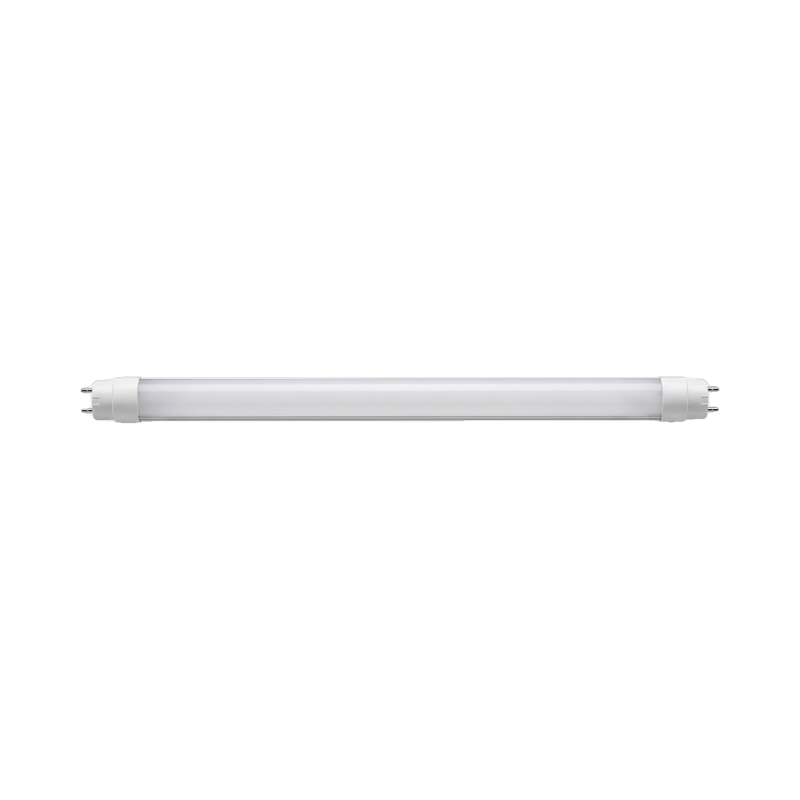

| ORM-TF24 | 47 × 7.9 × 7.9 in | 25 | 13.6 lbs | — |
