Specification Sheet
gogreenledinternational.com
DLC PremiumETL Listed5-Year Warranty
LED Tubes

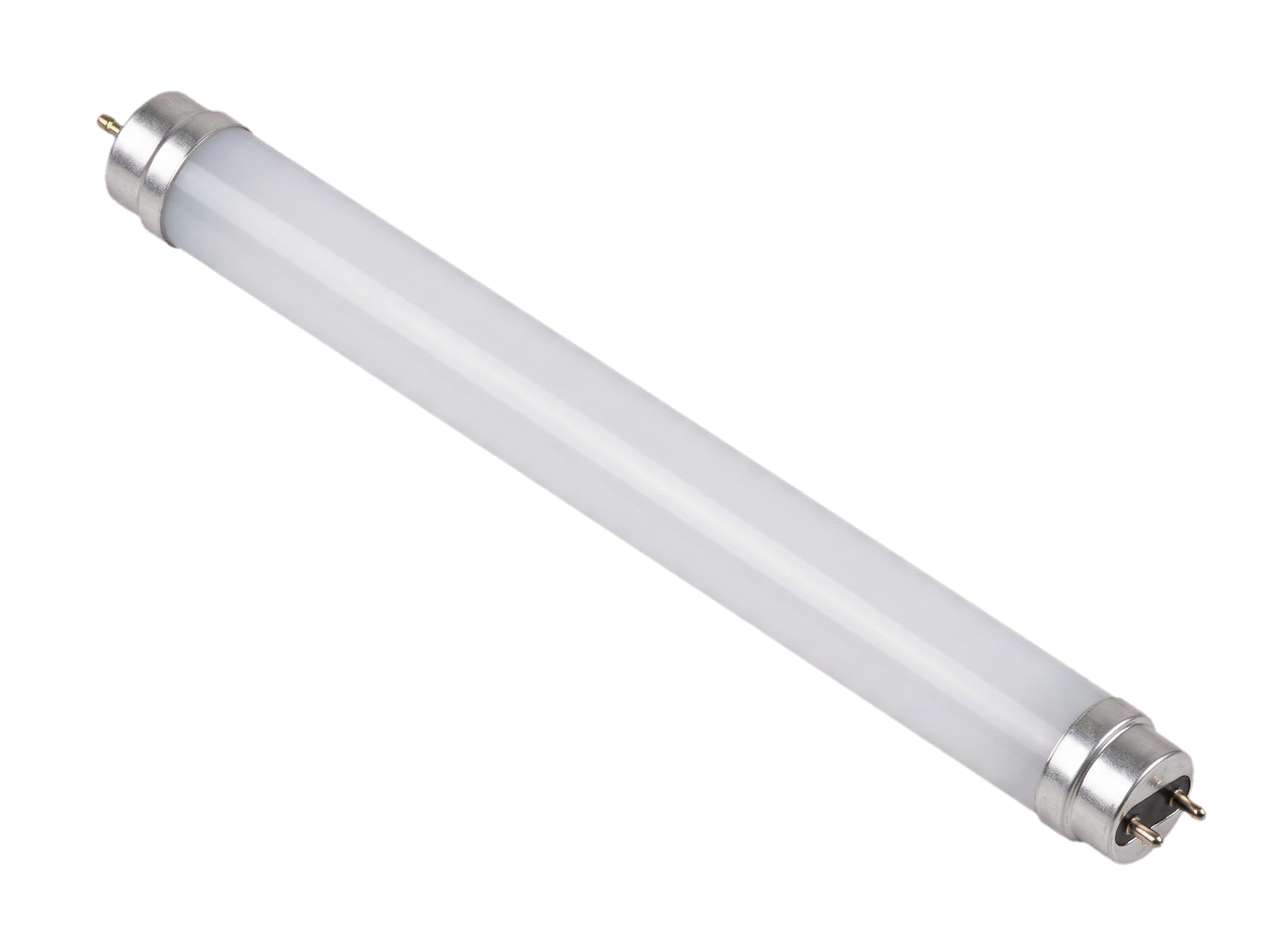

8FT T8 LED Tube FA8 & R17D
GGL-8FT-T8
8-foot T8 LED tube available with FA8 single pin or R17D recessed double contact base. Available in milky and clear cover options.
40W
Wattage
130 LPW
Efficacy
4000K / 5000K
CCT
8FT
Length
Key Features
Construction
Aluminum + polycarbonate construction. Available in milky and clear cover options. FA8 single pin or R17D recessed double contact base.
Electrical
Input Voltage: 120-277VAC, 50/60Hz. 40W output for high-lumen 8-foot applications.
Applications
Warehouses, retail, gymnasiums, industrial spaces, and any application using 8FT fluorescent T8 fixtures.
Listing
ETL listed. DesignLights Consortium (DLC) 5.1.
Warranty
5-year limited warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-8FT-FA8 (Milky) | 8FT | 40W | 5,200 lm |
| GGL-8FT-FA8 (Clear) | 8FT | 40W | 5,200 lm |
| GGL-8FT-R17D (Milky) | 8FT | 40W | 5,200 lm |
Specifications
Technical Details
CCT
4000K / 5000K
Efficacy
130 LPW
CRI
> 80
Input Voltage
120–277VAC, 50/60Hz
Base
FA8 Single Pin / R17D Recessed Double Contact
Cover
Milky or Clear
Length
96" (8FT)
Lifespan
50,000 hrs (L70)
Certifications
ETL, DLC 5.1
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-8FT-FA8 (Milky) | 8FT T8 Tube, 40W, FA8 Single Pin Base, Milky Cover |
| GGL-8FT-FA8 (Clear) | 8FT T8 Tube, 40W, FA8 Single Pin Base, Clear Cover |
| GGL-8FT-R17D (Milky) | 8FT T8 Tube, 40W, R17D Recessed Double Contact Base, Milky Cover |
Installation
Installation Instructions
1
Turn off power and remove existing 8FT fluorescent tube.
2
Disconnect and remove existing ballast.
3
Wire line voltage directly to the socket.
4
For FA8: insert single pin end into socket and push to lock.
5
For R17D: align recessed double contact pins and insert into socket.
6
Restore power and verify operation.
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| GGL-8FT-T8 | 94 × 6 × 8 in | 25 | 26.5 lbs | — |
