Specification Sheet
gogreenledinternational.com
DLC PremiumETL Listed5-Year Warranty0-10V DimmingCCT Selectable
Outdoor Lighting
LED Area Light
GGL-AR09
High-performance LED area light with wattage and CCT selectable options. Designed for parking lots, roadways, and outdoor applications. IP65 rated.
100–500W
Wattage
170 LPW
Efficacy
3 Selectable
CCT
> 80
CRI
Key Features
Construction
Housing: Die-cast Aluminum. Lens: Polycarbonate.
Electrical
High efficacy up to 170lm/W, 500W up to 160lm/W. AC120-277V, AC277-480V. 0-10V dimming. Surge Protection: L/N-P 6KV for 150W, 10KV for 300W & 500W. CCT & Wattage Selectable. Light Distribution: T3. Waterproof: IP65 rated.
Applications
Parking lots, Roadways, Outdoor applications.
Installation
3 kinds of mounting brackets available (SF, DI, TR). Plug-in and Zhaga socket microwave motion sensor available (Factory). Photocell dusk to dawn function Optional.
Listing
UL DLC Premium.
Warranty
5 years warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-AR09-150W-L-PC-3CCT-T3 | 150W (120-277V) | 100W / 120W / 150W | max. 25,500 lm |
| GGL-AR09-150W-H-PC-3CCT-T3 | 150W (277-480V) | 100W / 120W / 150W | max. 25,500 lm |
| GGL-AR09-300W-L-PCX-3CCT-T3 | 300W (120-277V) | 200W / 240W / 300W | max. 51,000 lm |
| GGL-AR09-300W-H-PCX-3CCT-T3 | 300W (277-480V) | 200W / 240W / 300W | max. 51,000 lm |
| GGL-AR09-500W-L-DW5C3T3 | 500W (120-277V) | 300W / 350W / 400W / 450W / 500W | max. 80,000 lm |
Specifications
Technical Details
CCT
3000K / 4000K / 5000K (Tunable)
Efficacy
Up to 170 lm/W (500W: 160 lm/W)
CRI
> 80
Input Voltage
AC120-277V / AC277-480V
Operating Temp
-40°C to 50°C
Certifications
UL, DLC Premium
Dimming
0-10V
IP Rating
IP65
Surge Protection
6KV (150W) / 10KV (300W & 500W)
Light Distribution
Type III (T3)
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-AR09-150W-L-PC-3CCT-T3 | AR09 Series, 100W/120W/150W, L=120-277Vac, T3=Type III, PC=Power & CCT selectable, 3000K/4000K/5000K |
| GGL-AR09-300W-L-PCX-3CCT-T3 | AR09 Series, 200W/240W/300W, L=120-277Vac, T3=Type III, PCX=Power & CCT selectable |
| GGL-AR09-150W-H-PC-3CCT-T3 | AR09 Series, 100W/120W/150W, H=277-480Vac, T3=Type III, PC=Power & CCT selectable |
| GGL-AR09-300W-H-PCX-3CCT-T3 | AR09 Series, 200W/240W/300W, H=277-480Vac, T3=Type III, PCX=Power & CCT selectable |
| GGL-AR09-500W-L-DW5C3T3 | AR09 Series, 300W/350W/400W/450W/500W, L=120-277Vac, T3=Type III |
Dimensions
Physical Dimensions

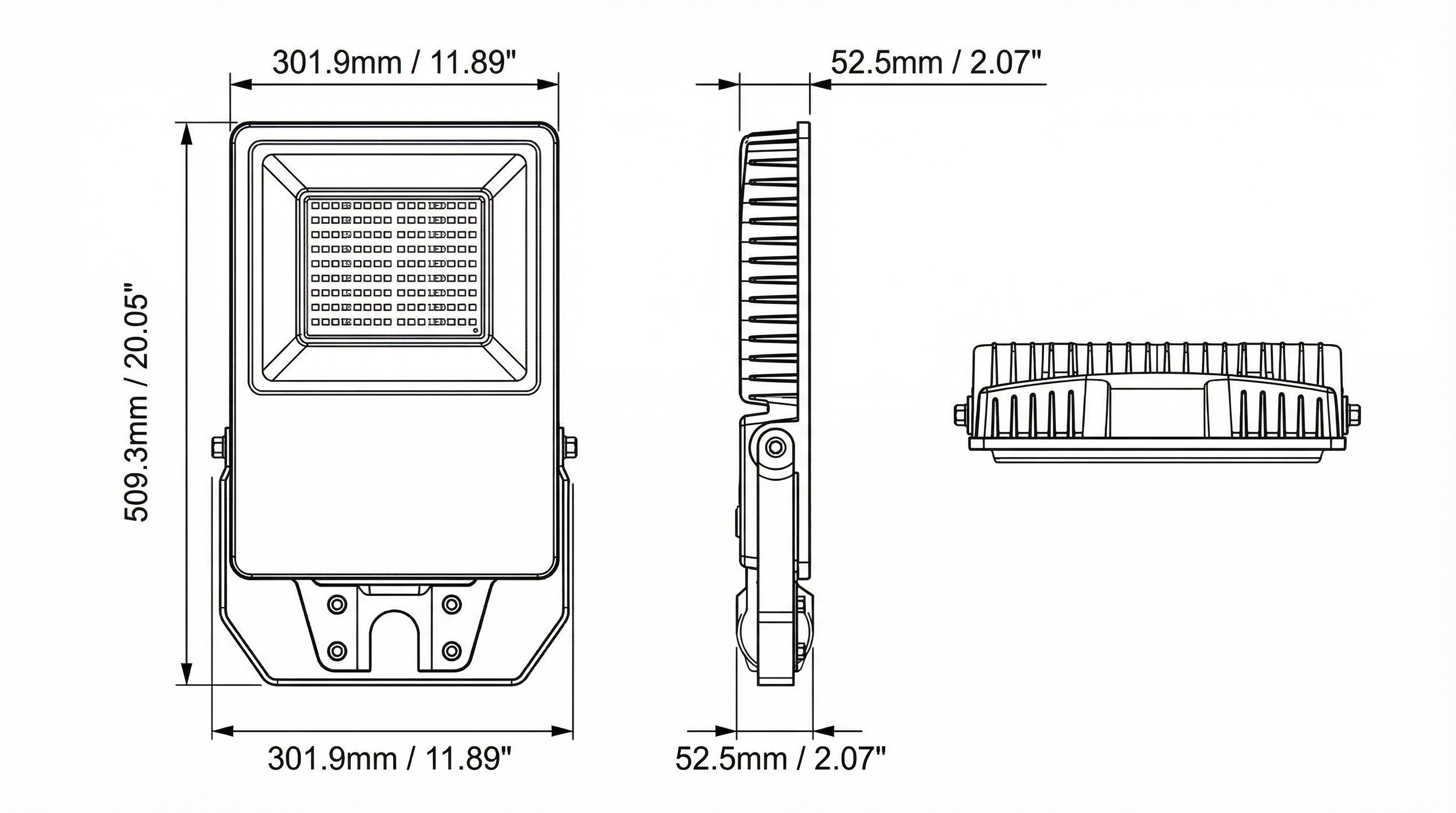

Dimension Drawing

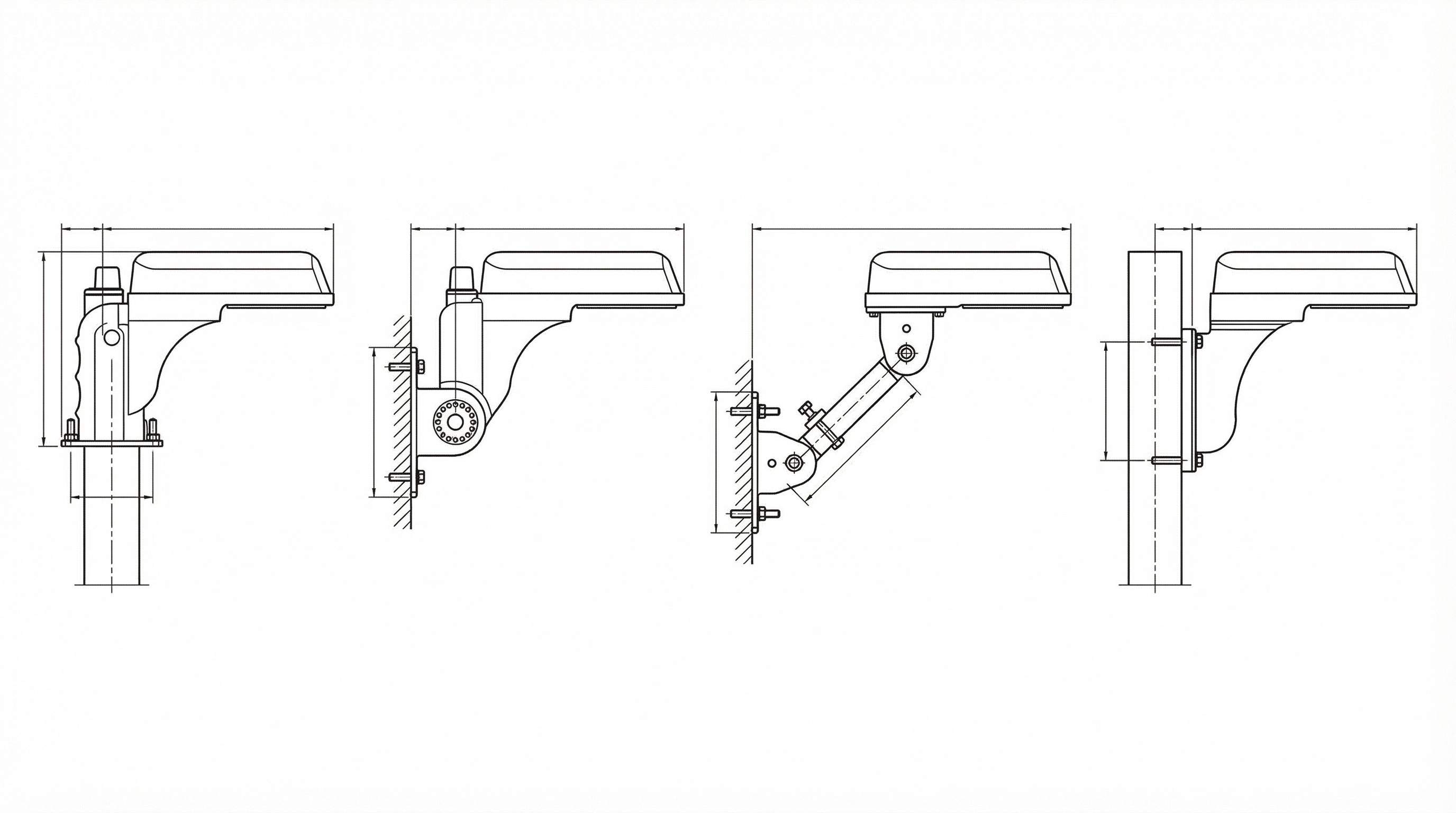

Mounting Options
Dimensions Table
| Size / Model | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| 100W/120W/150W | 16.63" (422.4mm) | 8.66" (219.9mm) | 2.07" (52.5mm) |
| 200W/240W/300W | 20.05" (509.3mm) | 11.89" (301.9mm) | 2.07" (52.5mm) |
| 300W–500W | 28.1" (713.5mm) | 13.6" (345.0mm) | 2.6" (66.0mm) |
Installation
Installation Instructions
1
Mount the slip fitter, direct mount, or trunnion bracket to the pole or surface.
2
Attach the fixture to the selected mounting bracket.
3
Route wiring through the arm and connect: black to black, white to white, green to ground.
4
Install photocell (if applicable) into the twist-lock receptacle.
5
Adjust fixture angle as needed and tighten all hardware.
6
Restore power and verify operation.
Mounting Options
Slip Fitter (SF)
Fits over standard tenon. Adjustable tilt for precise aiming.
Direct Mount (DI)
Direct mount for wall or pole-mounted installations.
Trunnion Mount (TR)
Adjustable trunnion bracket for wall, ground, or surface mounting with full tilt adjustment.
Accessories
Available Accessories
Photocell (277V)
Twist-lock photocell for dusk-to-dawn automatic on/off control (277V).
Photocell (480V)
Twist-lock photocell for dusk-to-dawn automatic on/off control (480V).
Glare Shield
Optional glare shield to reduce backlight and uplight.
Shorting Cap
Shorting cap for photocell receptacle when photocell is not used.
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| GGL-AR09-150W | 19.1" × 11.1" × 4.5" | 1 pc | 7.3 lbs | — |
| GGL-AR09-300W | 22.3" × 14.3" × 4.5" | 1 pc | 10.1 lbs | — |
| GGL-AR09-500W | 27.3" × 17.7" × 5.1" | 1 pc | 17.6 lbs | — |
