Specification Sheet
gogreenledinternational.com
DLC PremiumETL Listed5-Year Warranty0-10V DimmingCCT Selectable
Indoor Lighting
Backlit LED Panel Light
GGL-B2B4B14
Edge-to-edge backlit LED panel delivering smooth, shadow-free illumination. Ultra-slim profile for recessed and surface-mount installations.
15–72W
Wattage
130 LPW
Efficacy
5 Selectable
CCT
≥ 80
CRI
Key Features
Construction
Integrative aluminum frame provides a durability structure. 5 Wattage and 5 CCT selectable switches are integrated on the driver. Minimize stock — 1 SKU can cover up to 25 models.
Electrical
Input Voltage: 120-277Vac 50/60Hz. 0-10V dimming. THD ≤ 20%, PF ≥ 0.9.
Applications
Offices, retail, schools, restaurants, healthcare, residential, and hospitality applications.
Installation
Recessed mounting with T-bar, suspension and surface mounting also available. Ambient temperatures: -20°C to 45°C.
Listing
ETL listed, suitable for damp location. DesignLights Consortium (DLC) Premium.
Warranty
5-year limited warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-B2-S40-3565 | 2' × 2' | 15W / 20W / 25W / 30W / 40W | 1,950–5,000 lm |
| GGL-B4-S72-3565 | 2' × 4' | 30W / 40W / 50W / 60W / 72W | 3,900–9,000 lm |
| GGL-B4-S50-1536 | 2' × 4' | 15W / 20W / 30W / 40W / 50W | 1,950–6,500 lm |
| GGL-B14-S40-3565 | 1' × 4' | 15W / 20W / 25W / 30W / 40W | 1,950–5,000 lm |
Specifications
Technical Details
CCT
3500K / 4000K / 5000K / 5700K / 6500K (Switchable)
Efficacy
Up to 130 LPW
CRI
≥ 80
Input Voltage
120–277VAC, 50/60Hz
Dimming
0-10V
Operating Temp
-20°C to 45°C
Certifications
ETL, DLC 5.1 Premium
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-B2-S40-3565-(blank,-S) | 2' × 2' Backlit Panel, Power Switchable 15W/20W/25W/30W/40W, Color Switchable 3500K/4000K/5000K/5700K/6500K, Sensor Base |
| GGL-B4-S72-3565-(blank,-S) | 2' × 4' Backlit Panel, Power Switchable 30W/40W/50W/60W/72W, Color Switchable 3500K/4000K/5000K/5700K/6500K, Sensor Base |
| GGL-B4-S50-1536-(blank,-S) | 2' × 4' Backlit Panel, Power Switchable 15W/20W/30W/40W/50W, Color Switchable 3500K/4000K/5000K/5700K/6500K, Sensor Base |
| GGL-B14-S40-3565-(blank,-S) | 1' × 4' Backlit Panel, Power Switchable 15W/20W/25W/30W/40W, Color Switchable 3500K/4000K/5000K/5700K/6500K, Sensor Base |
Sensor Solutions
GGL-GGL-ANT-1P-5T / GGL-PT01S-PIR
PIR Sensor, 3.5mm Audio Jack
Remote: GGL-PT01-RC
GGL-GGL-ANT-1P-5T-BLE-GE
Bluetooth PIR Sensor, 3.5mm Audio Jack
Remote: GGL-PT01-RC
Emergency Solutions
Emergency LED Driver (BILLDA)
Emergency LED Driver, 8W, 90-Min Battery
Dimensions
Physical Dimensions

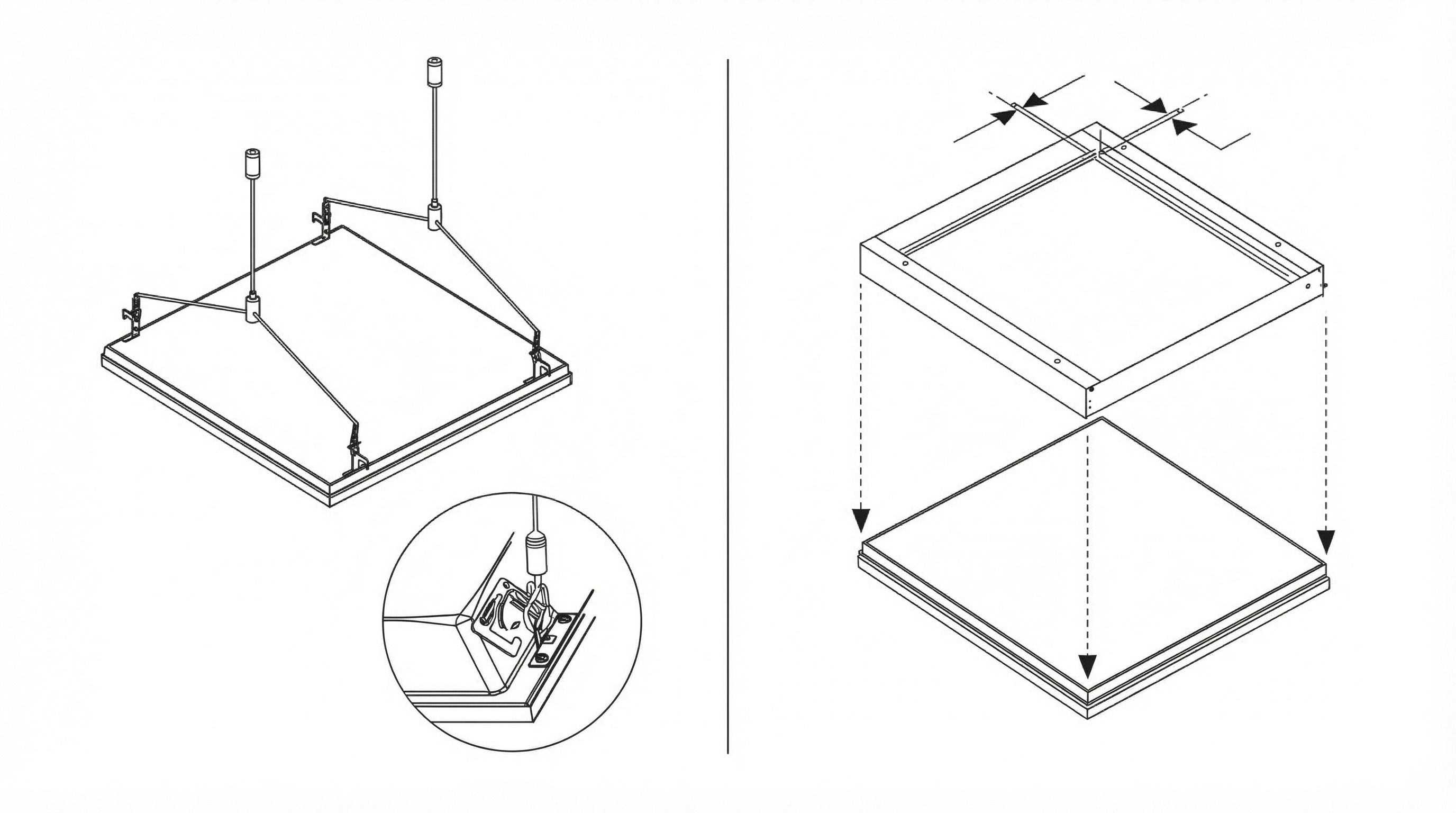

Installation Options
Dimensions Table
| Size / Model | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| 2' × 2' | 23.7" | 23.7" | 1.6" |
| 2' × 4' | 47.7" | 23.7" | 1.6" |
| 1' × 4' | 47.7" | 11.8" | 1.6" |
Installation
Installation Instructions
1
Lift panel into the T-bar ceiling grid opening and rest on grid flanges.
2
Secure panel using the integrated spring clips on each side.
3
Connect wiring: match white to white, black to black, green/yellow to ground.
4
Close the junction box cover and ensure all connections are secure.
5
For cable mount: attach Y-cable kit to ceiling anchors, then hang panel.
6
For surface mount: secure surface mount frame to ceiling, then snap panel into frame.
Mounting Options
Cable Mount Kit
Optional Y cable mounting kit allows for suspended installations from any ceiling type. (2 pcs/kit)
Surface Mount Kit
Optional surface mount kit allows for installation on plaster or other hard ceilings.
T-Bar Grid
Standard recessed installation into T-bar ceiling grid. Panel rests on grid flanges with spring clip retention.
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| GGL-B2 (2'×2') | 25.2" × 25.2" × 6.1" | 4 pcs | 16.23 lbs | 144 pcs |
| GGL-B4 (2'×4') | 49.4" × 25.2" × 6.1" | 4 pcs | 39.30 lbs | 72 pcs |
| GGL-B14 (1'×4') | 49.4" × 13.7" × 6.1" | 4 pcs | 20.20 lbs | — |
