High Bay
Linear High Bay
GGL-LHB09
Super compact design linear LED high bay using die-cast housing. The compact design saves labor cost and improves installation efficiency.
130–300W
Wattage
150 LPW
Efficacy
2 Selectable
CCT
> 80
CRI
Key Features
Construction
Super compact design using die-cast housing. The compact design saves labor cost and improves installation efficiency. Die-cast aluminum housing features rock-solid quality and performance.
Electrical
Universal 120-277VAC input voltage. Wattage adjustable. Output constant current lever can be adjusted through output cable with 0-10V. Operating Temperature Range: -30°C to 50°C. Note: Operating with emergency battery temperature range: 0°C to 50°C.
Applications
Office spaces, supermarkets, meeting rooms, and high bay applications.
Installation
Surface mount (Option). Steel wire rope mount (default).
Listing
UL DLC damp location listed.
Warranty
5 years warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-LHB09-165WBML1A2 | 165W | 130W / 150W / 165W | max. 23,100 lm |
| GGL-LHB09-220WBML1A2 | 220W | 180W / 200W / 220W | max. 30,800 lm |
| GGL-LHB09-300WBML1A2 | 300W | 255W / 275W / 300W | max. 42,000 lm |
Specifications
Technical Details
CCT
4000K / 5000K
Efficacy
Up to 150 lm/W
CRI
> 80
Input Voltage
AC120-277V
Operating Temp
-30°C to 50°C
Certifications
UL, DLC
Dimming
0-10V
Light Distribution
90.6 DEG
Lifetime
50,000 hours
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-LHB09-165WBML1A2 | LHB09 Linear High Bay, 130W/150W/165W, B=Lumileds 2835, M=Matte Lens, L=Lifud Driver, 4000K/5000K |
| GGL-LHB09-220WBML1A2 | LHB09 Linear High Bay, 180W/200W/220W, B=Lumileds 2835, M=Matte Lens, L=Lifud Driver, 4000K/5000K |
| GGL-LHB09-300WBML1A2 | LHB09 Linear High Bay, 255W/275W/300W, B=Lumileds 2835, M=Matte Lens, L=Lifud Driver, 4000K/5000K |
Sensor Solutions
Motion Sensor
Motion sensor (Sensor base)
PIR Sensor
PIR sensor (Sensor base)
Emergency Solutions
Emergency Driver
Emergency LED driver for battery backup.
Dimensions
Physical Dimensions

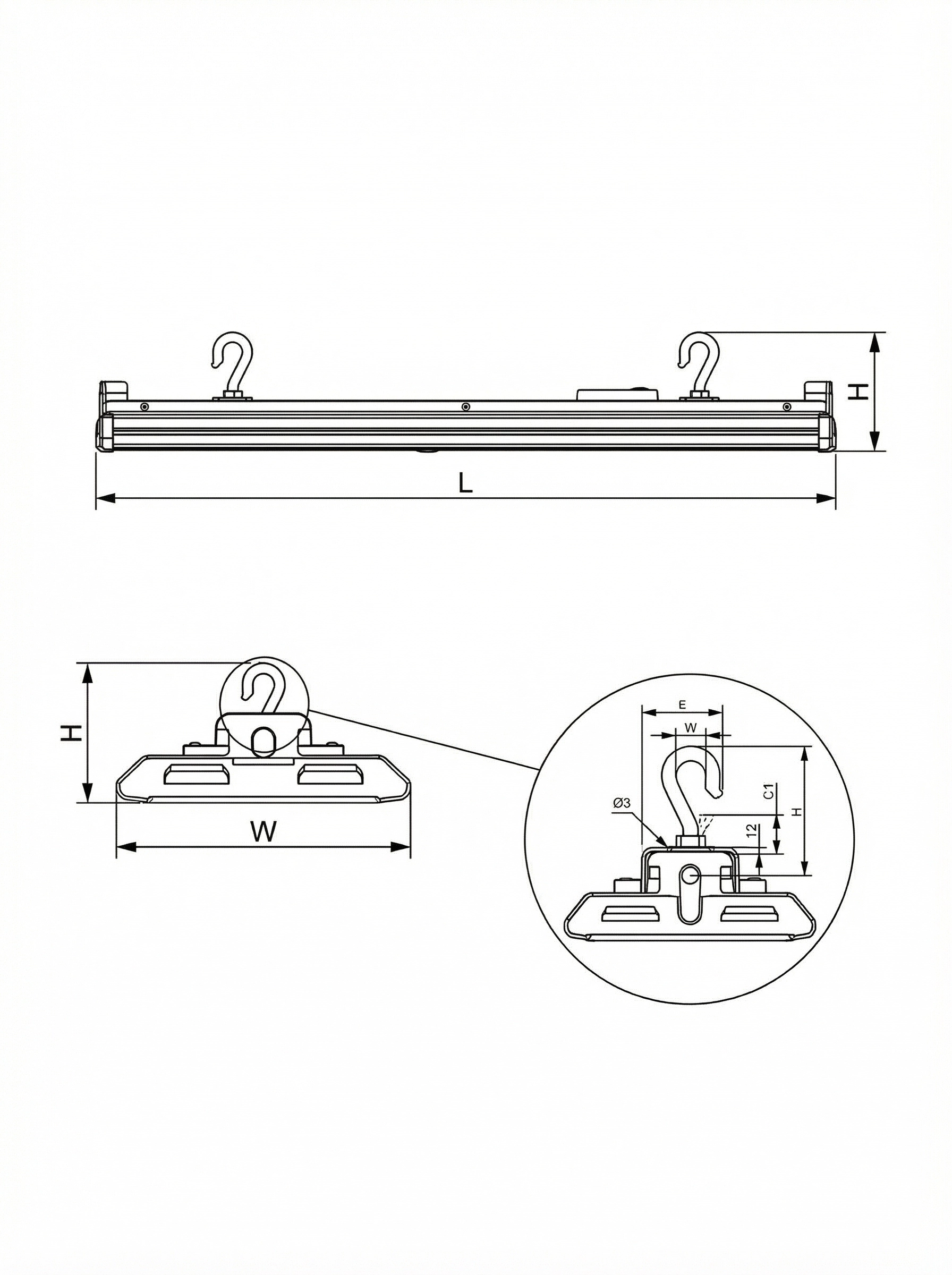

Dimension Drawing
Dimensions Table
| Size / Model | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| GGL-LHB09-165W | 23.98" (609mm) | 11.80" (300mm) | 1.58" (40mm) |
| GGL-LHB09-220W | 23.98" (609mm) | 14.16" (360mm) | 1.58" (40mm) |
| GGL-LHB09-300W | 23.98" (609mm) | 14.16" (360mm) | 1.58" (40mm) |
Installation
Installation Instructions
1
Attach chain or steel wire rope mounting brackets to the fixture.
2
Suspend from ceiling structure using chains, cables, or steel wire rope.
3
Connect wiring through the junction box: black to black, white to white, green to ground.
4
Install optional sensor into the sensor port if applicable.
5
Adjust height and level the fixture. Restore power and test.
Mounting Options
Chain Installation
Standard chain suspension from ceiling structure.
Surface Installation
Direct surface mount to ceiling.
Steeve Installation
Pendant steeve installation.
Accessories
Available Accessories
Iron Chain
Default chain for suspension mounting.
Iron Hook
Default hook for suspension mounting.
Ceiling Box
Ceiling box for junction (Factory).
Ceiling Mounting
Ceiling mounting bracket (Factory).
Sensor
Motion sensor / PIR sensor.
Emergency Driver
Emergency LED driver for battery backup.
