Specification Sheet
gogreenledinternational.com
DLC PremiumETL Listed5-Year Warranty0-10V DimmingCCT Selectable
High Bay

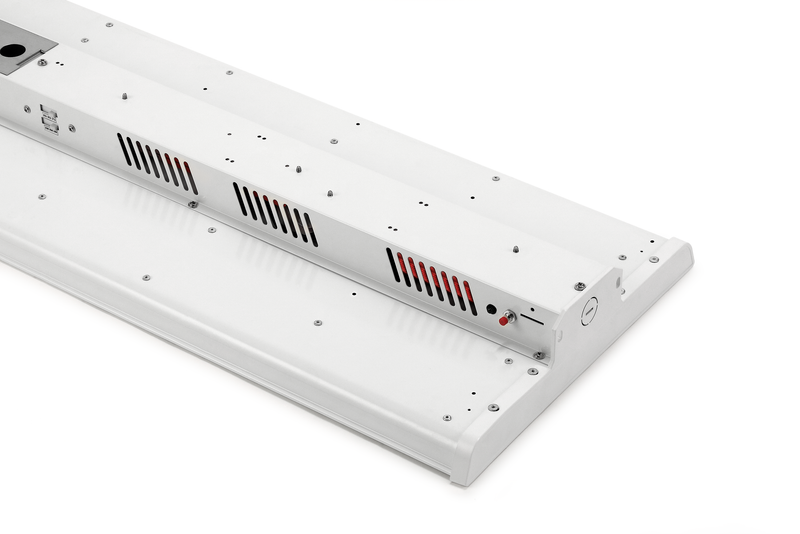

Linear High Bay Multi-Size
GGL-LHB10
Multi-size linear LED high bay available in 2FT, 3FT, and 4FT lengths with wattage and CCT selectable options. Durable design with robust housing.
110–400W
Wattage
160 LPW
Efficacy
3 Selectable
CCT
> 80
CRI
Key Features
Construction
Durable design — constructed of a robust durable housing.
Electrical
High quality drives make the product more stable and reliable. CCT and wattage switchable through dip-switches or controller. High-quality LEDs provide bright and uniform lighting. Compatible with standard 0-10V dimmer. Working temperature: -4°F~113°F.
Applications
Warehouse, supermarket, covered court, utility areas.
Installation
Suspend the fixture by using suspension chain. Pendant the fixture on steeve by junction box.
Listing
DLC Premium. Comply with the requirements of the Standard(s) for Luminaires (CAN/CSA-C22.2 No. 250.0) and are identified with the cETL Listed Mark.
Warranty
5 years warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-LHB10-2FT-110/130/160W-4057K | 2FT | 110W / 130W / 160W | 17,600–25,600 lm |
| GGL-LHB10-3FT-175/200/225W-4057K | 3FT | 175W / 200W / 225W | 28,000–36,000 lm |
| GGL-LHB10-4FT-250/275/300W-4057K | 4FT | 250W / 275W / 300W | 40,000–48,000 lm |
| GGL-LHB10-4FT-255/300/400W-4057K | 4FT (400W) | 255W / 300W / 400W | 40,800–64,000 lm |
Specifications
Technical Details
CCT
4000K / 5000K / 5700K
Efficacy
160 LM/W
CRI
> 80
Input Voltage
AC120-277V
Operating Temp
-4°F to 113°F
Certifications
DLC, ETL
Dimming
0-10V
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-LHB10-2FT-110/130/160W-4057K | 2FT, 110/130/160W, 4000K/5000K/5700K |
| GGL-LHB10-3FT-175/200/225W-4057K | 3FT, 175/200/225W, 4000K/5000K/5700K |
| GGL-LHB10-4FT-250/275/300W-4057K | 4FT, 250/275/300W, 4000K/5000K/5700K |
| GGL-LHB10-4FT-255/300/400W-4057K | 4FT, 255/300/400W, 4000K/5000K/5700K |
Sensor Solutions
Smart Sensor
Output Dimming: 0-10V, Max Install Height: 49ft (Microwave) / 39ft (PIR), Detection Distance: 10ft
Emergency Solutions
Emergency Battery
UL listed approved, Emergency power: 20W, Charging time: 24 hours, Illumination time: 90 minutes
Dimensions
Physical Dimensions

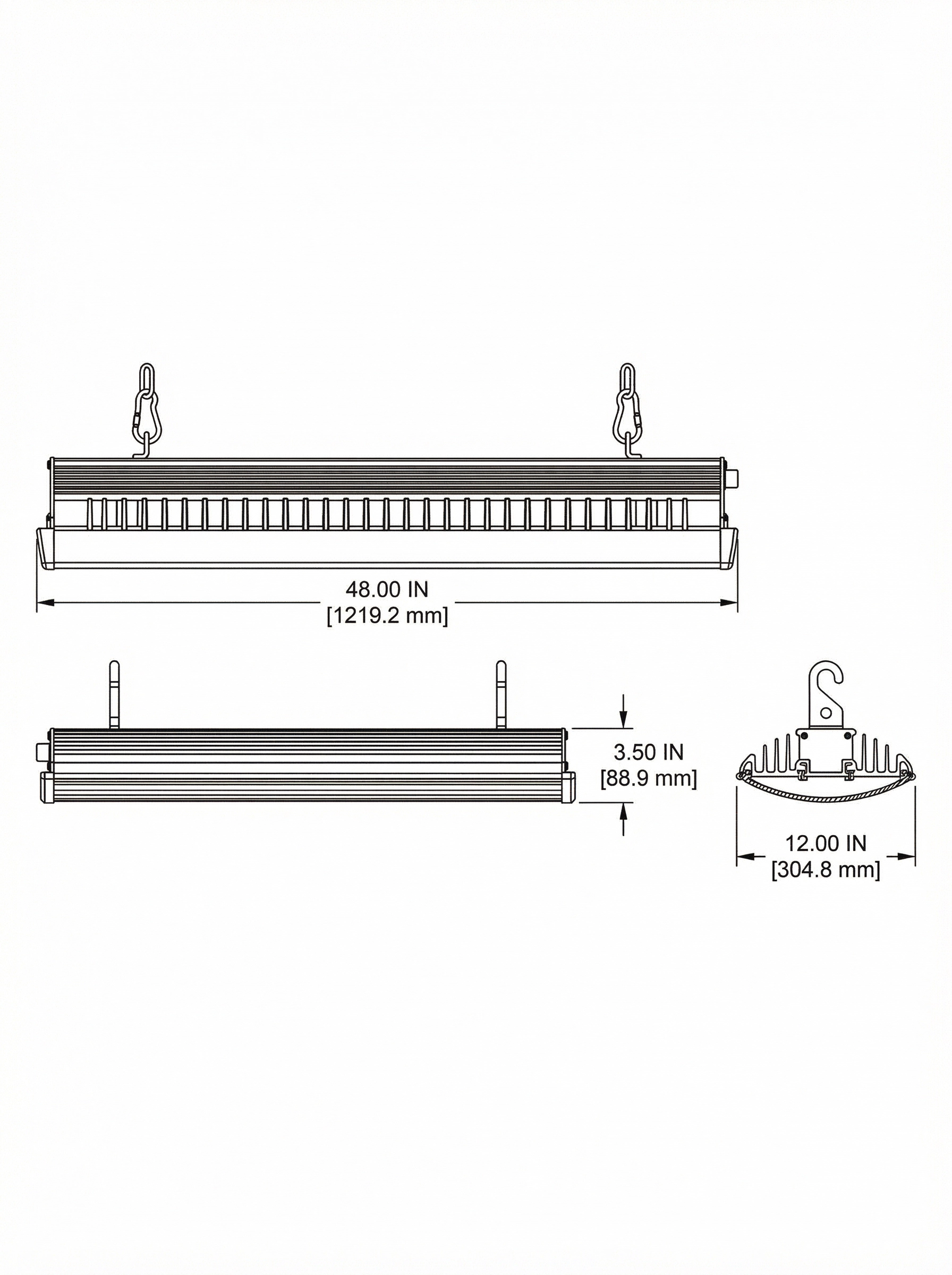

Dimension Drawing
Dimensions Table
| Size / Model | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| 2FT | 23.3" (591.8mm) | 12.5" (317.5mm) | 2.9" (73.7mm) |
| 3FT | 35.1" (891.5mm) | 12.5" (317.5mm) | 2.9" (73.7mm) |
| 4FT | 46.3" (1176mm) | 12.5" (317.5mm) | 2.9" (73.7mm) |
Installation
Installation Instructions
1
Attach suspension chain or steeve mounting brackets to the fixture.
2
Suspend from ceiling structure using chains or pendant steeve by junction box.
3
Connect wiring through the junction box: black to black, white to white, green to ground.
4
Install optional sensor or emergency battery if applicable.
5
Adjust height and level the fixture. Restore power and test.
Mounting Options
Chain Installation
Suspend the fixture by using suspension chain from ceiling structure.
Accessories
Available Accessories
Emergency Battery
UL listed, 20W emergency power, 24hr charge, 90-min illumination.
Remote Controller
LCD screen display, memory and apply function, universal smart controller for dimmable sensor.
Smart Sensor
0-10V output dimming, microwave and PIR detection.
Suspension Mounted Kit
Suspension mounting kit for chain installation.
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| GGL-LHB10-2FT | 24.8" × 14.2" × 6.8" | 2 pcs | 16.2 lbs | — |
| GGL-LHB10-3FT | 36.6" × 14.2" × 6.8" | 2 pcs | 20.3 lbs | — |
| GGL-LHB10-4FT (300W) | 47.8" × 14.2" × 6.8" | 2 pcs | 23.0 lbs | — |
| GGL-LHB10-4FT (400W) | 47.8" × 14.2" × 6.8" | 2 pcs | 23.0 lbs | — |
