Specification Sheet
gogreenledinternational.com
ETL Listed5-Year WarrantyCCT Selectable
Indoor Lighting

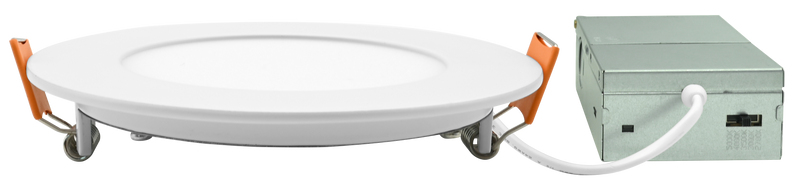

Slim Recessed Downlight
GGL-DL01
Ultra-thin LED slim recessed downlight with junction box. Edge-lit technology with no glare or dark spots. Available in 4, 6, and 8 inch sizes with 5 CCT selectable options.
9–18W
Wattage
85 LPW
Efficacy
5 Selectable
CCT
> 80
CRI
Key Features
Construction
Edge-lit technology, with no glare or dark spots. Continuous dimming from 10% with many Triac Dimmers. Instant on, No flicker.
Electrical
Input Voltage: AC120V 50/60Hz. THD ≤ 10%, PF ≥ 0.95.
Applications
Offices, retail, schools, restaurants, healthcare, residential, and hospitality applications.
Installation
Surface mounted, Recessed.
Listing
ETL Listed, Energy Star.
Warranty
5-year limited warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| 4EJCT09SR05 | 4 inch | 9W | 752 lm |
| 6EJCT12SR05 | 6 inch | 12W | 1,006 lm |
| 8EJCT18SR05 | 8 inch | 18W | 1,504 lm |
Specifications
Technical Details
CCT
2700K / 3000K / 3500K / 4000K / 5000K (5CCT Selectable)
Efficacy
85 lm/W
CRI
> 80
Input Voltage
120V
Operating Temp
-20°C to 45°C (-4°F to 113°F)
Certifications
ETL Listed, Energy Star
Dimming
Triac Dimming
THD
≤ 10%
Power Factor
≥ 0.95
Warranty
5 Years
Dimensions
Physical Dimensions

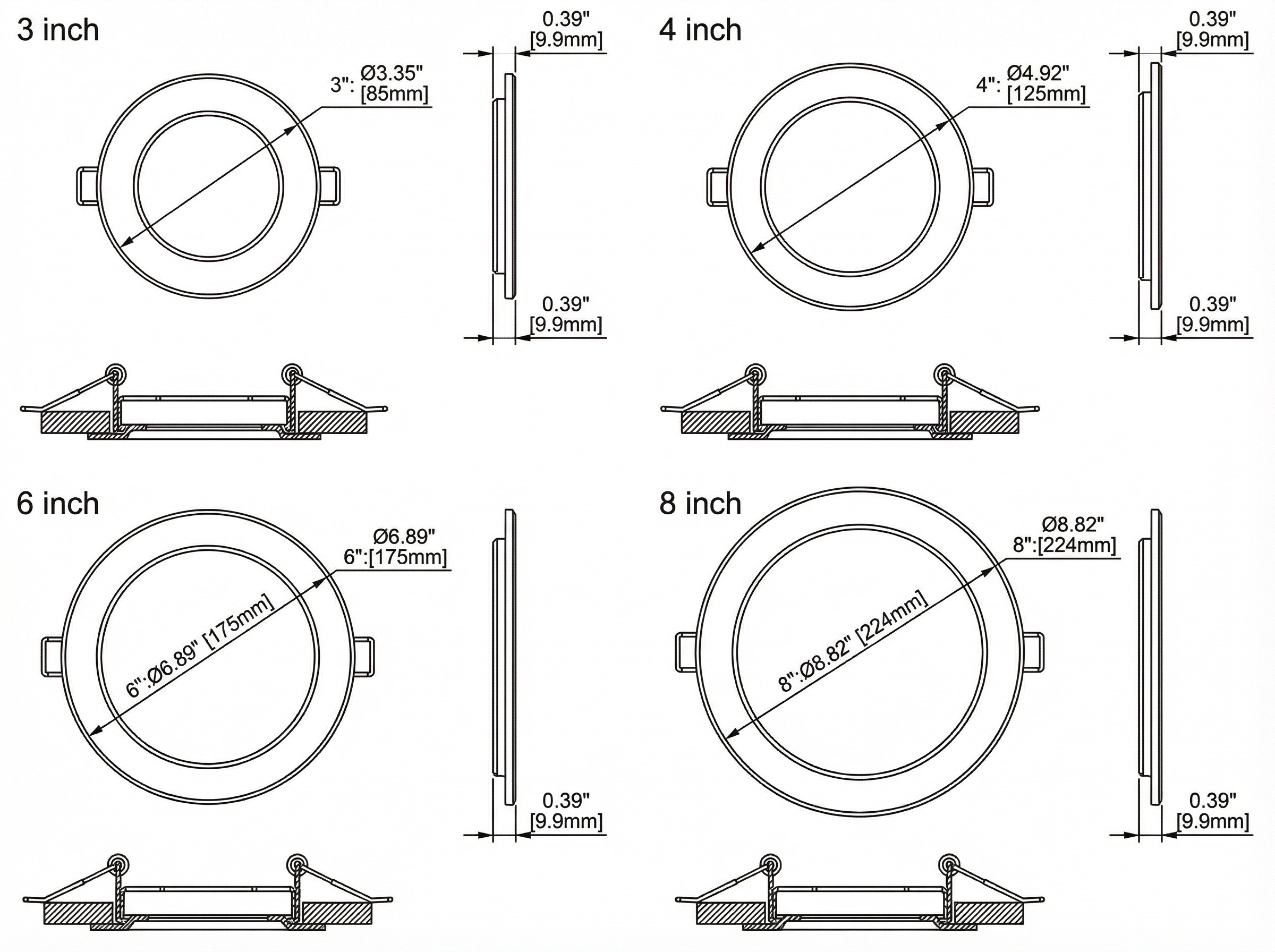

Dimension Drawing
Dimensions Table
| Size | Diameter (Ø) | Thickness | Cutout |
|---|---|---|---|
| 4 inch | Ø4.92" (125mm) | 0.39" (9.9mm) | Cutout: 4 21/64" (110mm) |
| 6 inch | Ø6.89" (175mm) | 0.39" (9.9mm) | Cutout: 6 19/64" (160mm) |
| 8 inch | Ø8.82" (224mm) | 0.39" (9.9mm) | Cutout: 8 5/64" (205mm) |
Installation
Installation Instructions
1
Cut the ceiling opening to the specified cutout size for the selected model.
2
Connect the junction box to the power supply: black to black, white to white, green to ground.
3
Insert the fixture into the ceiling opening.
4
The spring clips will automatically secure the fixture to the ceiling.
5
Restore power and verify operation.
Mounting Options
Recessed
Spring clip recessed mount into ceiling cutout. Junction box connects to existing wiring.
Surface Mounted
Surface mount option available.
Accessories
Available Accessories
J-Box Driver
Junction box driver included with fixture.
Connector
Wiring connector included.
Hole Cutout Card
Template card for marking ceiling cutout size.
