Specification Sheet
gogreenledinternational.com
DLC PremiumETL Listed5-Year Warranty0-10V DimmingCCT Selectable
Indoor Lighting
LED Troffer Light
GGL-T2T4
High-performance LED troffer with wattage and CCT selectable options. Precision-formed optical system reduces glare and improves light distribution.
15–72W
Wattage
130 LPW
Efficacy
5 Selectable
CCT
≥ 80
CRI
Key Features
Construction
Constructed of one-piece ribbed unitized housing and corners that interlock, preventing damage to luminaire. All sides and corners are turned in and hemmed, removing sharp edges for safe handling and installation.
Electrical
Luminaire is built with the highest quality driver that is Universal Voltage (120V-277V), uses long lasting, highly-efficient LED packages.
Optical System
Designed to reduce glare and improve light distribution through precision formed optics.
Dimming
Continuous dimming (0-10V) comes standard.
Energy Savings
Over 50% energy savings than traditionally fluorescent fixtures, low heat production requires less maintenance and operation cost.
Listing
ETL, DLC, FCC, RoHS.
Warranty
5 Years Limited Warranty. Rated for 50,000 hours.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-T2-S40-3565 | 2' × 2' | 15W / 20W / 25W / 30W / 40W | 1,950–5,000 lm |
| GGL-T4-S50-1536 | 2' × 4' | 15W / 20W / 30W / 40W / 50W | 1,950–6,500 lm |
| GGL-T4-S72-3565 | 2' × 4' | 30W / 40W / 50W / 60W / 72W | 3,900–9,000 lm |
Specifications
Technical Details
CCT
3500K / 4000K / 5000K / 5700K / 6500K (Selectable)
Efficacy
130 LPW
CRI
≥ 80
Input Voltage
120–277V AC
THD
≤ 20%
Certifications
ETL, DLC 5.1 Premium
Dimming
0-10V DC
Lifetime
50,000 hours
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-T2-S40-3565[Blank,-S] | 2'×2', 15W/20W/25W/30W/40W Selectable, 120-277V, 1950–5000lm, 130 lm/W, 3500K/4000K/5000K/5700K/6500K, 0-10V, 23.74"L × 23.74"W × 2.12"H |
| GGL-T4-S50-1536[Blank,-S] | 2'×4', 15W/20W/30W/40W/50W Selectable, 120-277V, 1950–6500lm, 130 lm/W, 3500K/4000K/5000K/5700K/6500K, 0-10V, 47.72"L × 23.74"W × 2.12"H |
| GGL-T4-S72-3565[Blank,-S] | 2'×4', 30W/40W/50W/60W/72W Selectable, 120-277V, 3900–9000lm, 130 lm/W, 3500K/4000K/5000K/5700K/6500K, 0-10V, 47.72"L × 23.74"W × 2.12"H |
Sensor Solutions
GGL-ANT-1P-5T / GGL-PT01S-PIR
PIR Sensor, 3.5mm Audio Jack
Remote: GGL-PT01-RC
GGL-ANT-1P-5T-BLE-GE
Bluetooth PIR Sensor, 3.5mm Audio Jack
Remote: GGL-PT01-RC
Emergency Solutions
GGL-EM Emergency Driver
Emergency LED Driver, 8W, 90-Min Battery Backup
Dimensions
Physical Dimensions

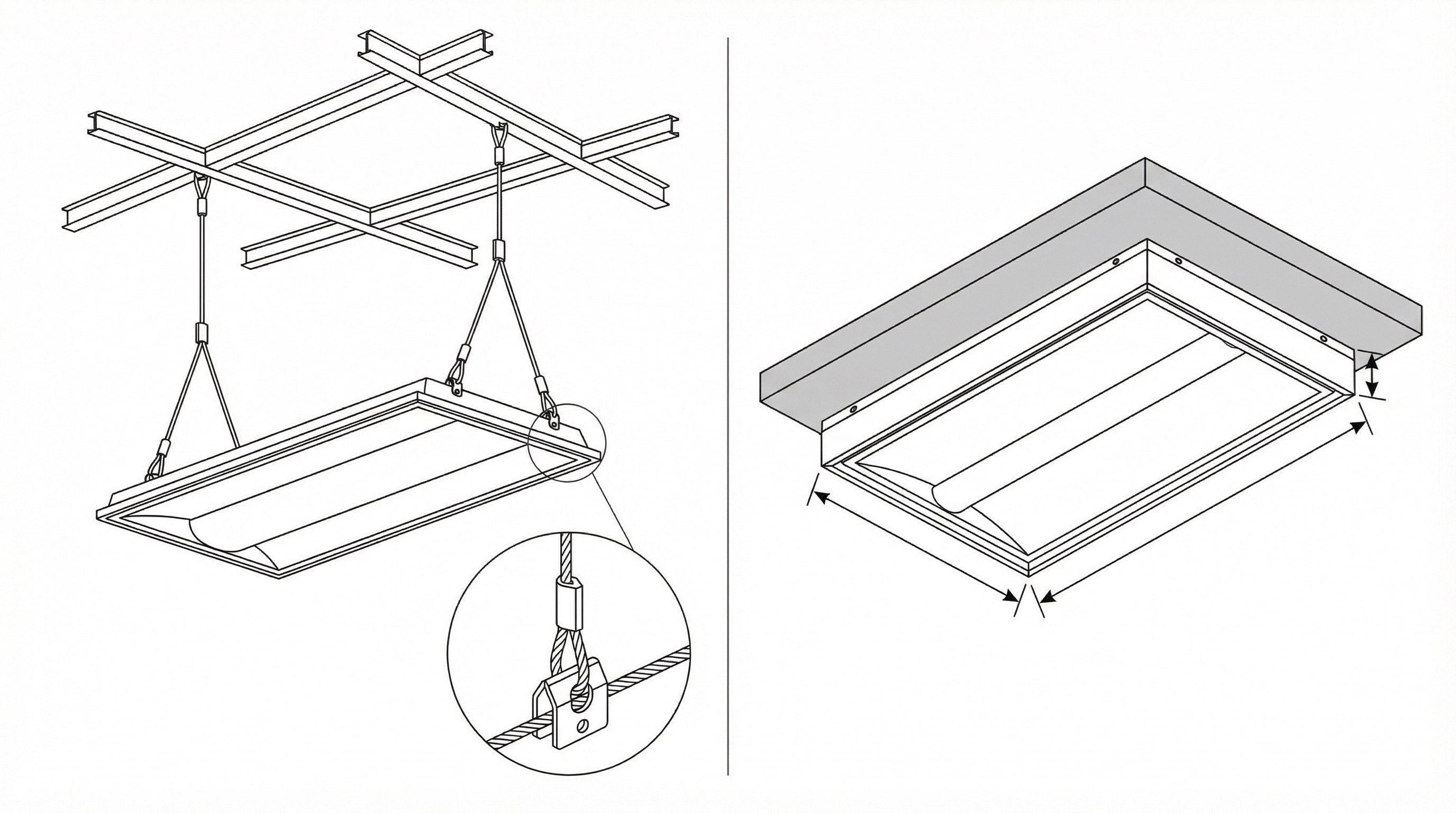

Installation Options
Dimensions Table
| Size / Model | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| 2' × 2' | 23.74" (603mm) | 23.74" (603mm) | 2.12" (53.9mm) |
| 2' × 4' | 47.72" (1212mm) | 23.74" (603mm) | 2.12" (53.9mm) |
Installation
Installation Instructions
1
Remove the existing fluorescent fixture or open the ceiling grid.
2
Place the troffer into the T-bar ceiling grid opening.
3
Secure using integrated spring clips on each side.
4
Connect wiring through the junction box: white to white, black to black, green to ground.
5
Close junction box and test operation.
Mounting Options
T-Bar Grid
Standard recessed installation into T-bar ceiling grid. Troffer rests on grid flanges with spring clip retention.
Hard Ceiling
For plaster or drywall ceilings, use optional surface mount kit or recessed housing.
