Specification Sheet
gogreenledinternational.com
DLC PremiumUL Listed5-Year Warranty0-10V DimmingCCT Selectable
Outdoor Lighting

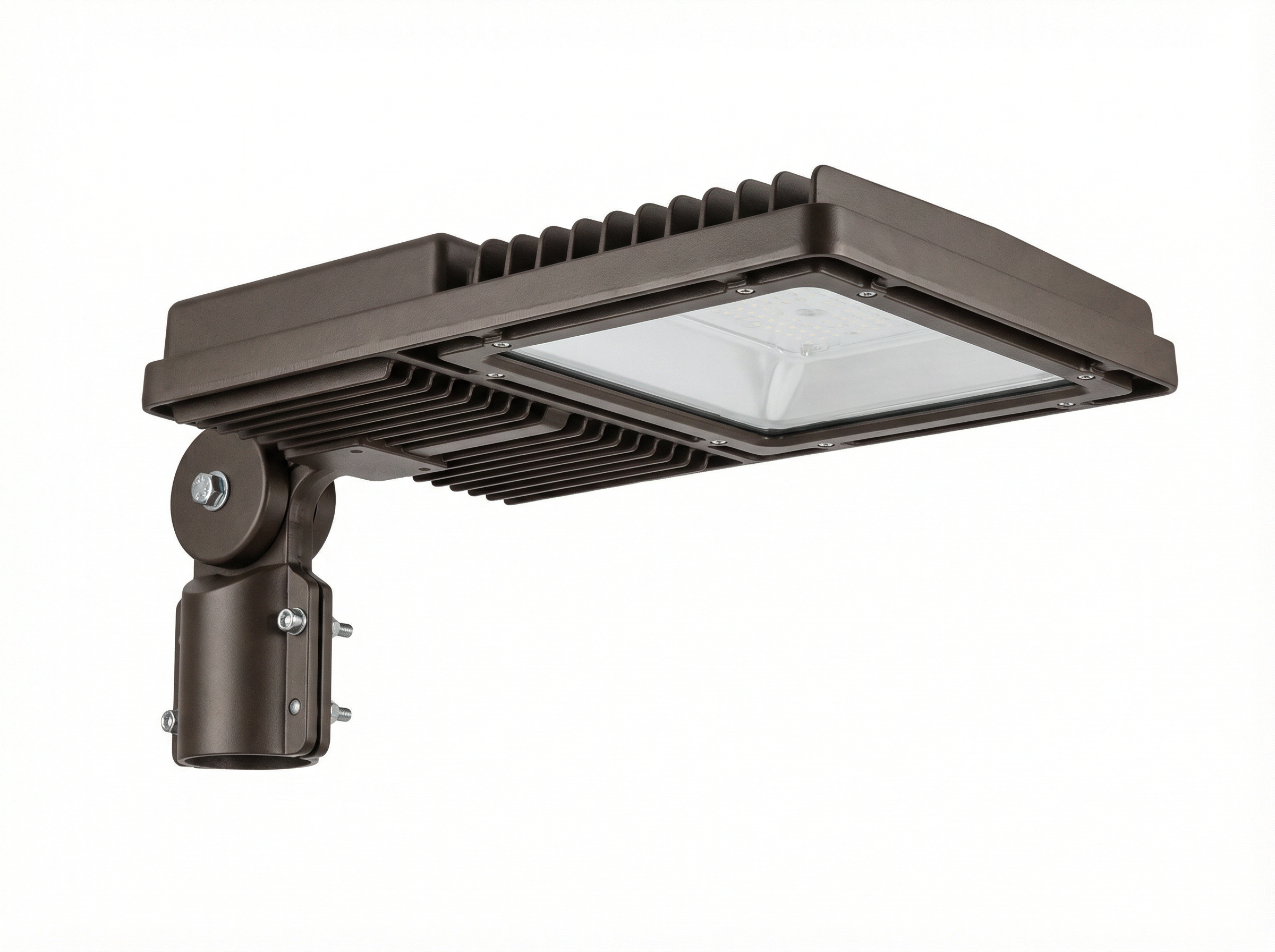

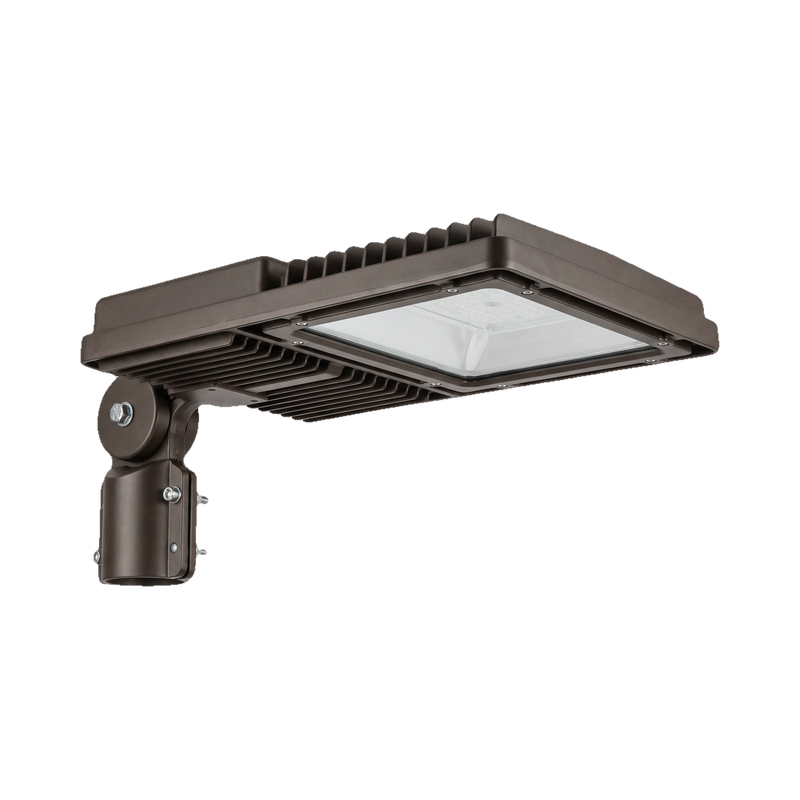

LED Area Light
GGL-AR08
High-performance LED area light for parking lots, roadways, and commercial outdoor spaces. CCT and wattage selectable with multiple mounting options.
100–300W
Wattage
140 LPW
Efficacy
3 Selectable
CCT
IP65
IP Rating
Key Features
Construction
Die-cast aluminum housing with tempered glass lens. IP65 rated for wet locations. 10KV surge protection standard.
Electrical
Input Voltage: 120-277VAC, 50/60Hz. 0-10V dimming. Power factor ≥ 0.9, THD < 20%.
Optics
CCT and wattage selectable via internal DIP switches. Optional photocell for dusk-to-dawn operation.
Applications
Parking lots, roadways, pathways, commercial properties, and outdoor area lighting.
Listing
UL listed. DesignLights Consortium (DLC) 5.1 Premium. IP65 rated.
Warranty
5-year limited warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-AR08-150W | Standard | 100W / 120W / 150W | Up to 21,000 lm |
| GGL-AR08-300W | Large | 200W / 240W / 300W | Up to 42,000 lm |
Specifications
Technical Details
CCT
3000K / 4000K / 5000K (Switchable)
Efficacy
Up to 140 LPW
CRI
> 80
Input Voltage
120–277VAC, 50/60Hz
Dimming
0-10V
IP Rating
IP65
Surge Protection
10KV
Operating Temp
-40°C to 50°C
Lifespan
50,000 hrs (L70)
Certifications
UL, DLC 5.1 Premium
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-AR08-150WBT3DA2-BR10S | Area Light 150W, CCT Selectable 3000K/4000K/5000K, 10KV Surge, Photocell Ready |
| GGL-AR08-300WBT3DA2-BR10S | Area Light 300W, CCT Selectable 3000K/4000K/5000K, 10KV Surge, Photocell Ready |
Installation
Installation Instructions
Mounting Options
Slipfitter (Type A)
Fits over round poles. Adjustable angle.
Arm Mount (Type B)
Square or round pole arm mount.
Trunnion (Type D)
Yoke/trunnion mount for wall or pole.
Accessories
Available Accessories
Type A Mount (Slipfitter)
Type A 08
Slipfitter mount for round poles
Type B Mount (Arm)
Type B 08
Arm mount for square/round poles
Type D Mount (Trunnion)
Type D 08
Trunnion/yoke mount for wall or pole
Photocell
OJ-M715
Dusk-to-dawn photocell, 0-480V/15A
Shorting Cap
AR08 Shorting Cap
Photocell shorting cap
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| GGL-AR08-150W | 21.65 × 12.6 × 5.91 in | 1 | 11.24 lbs | — |
| GGL-AR08-300W | 24.8 × 14.96 × 5.91 in | 1 | 13.67 lbs | — |
