Specification Sheet
gogreenledinternational.com
UL Listed5-Year Warranty0-10V Dimming
Garage / Utility

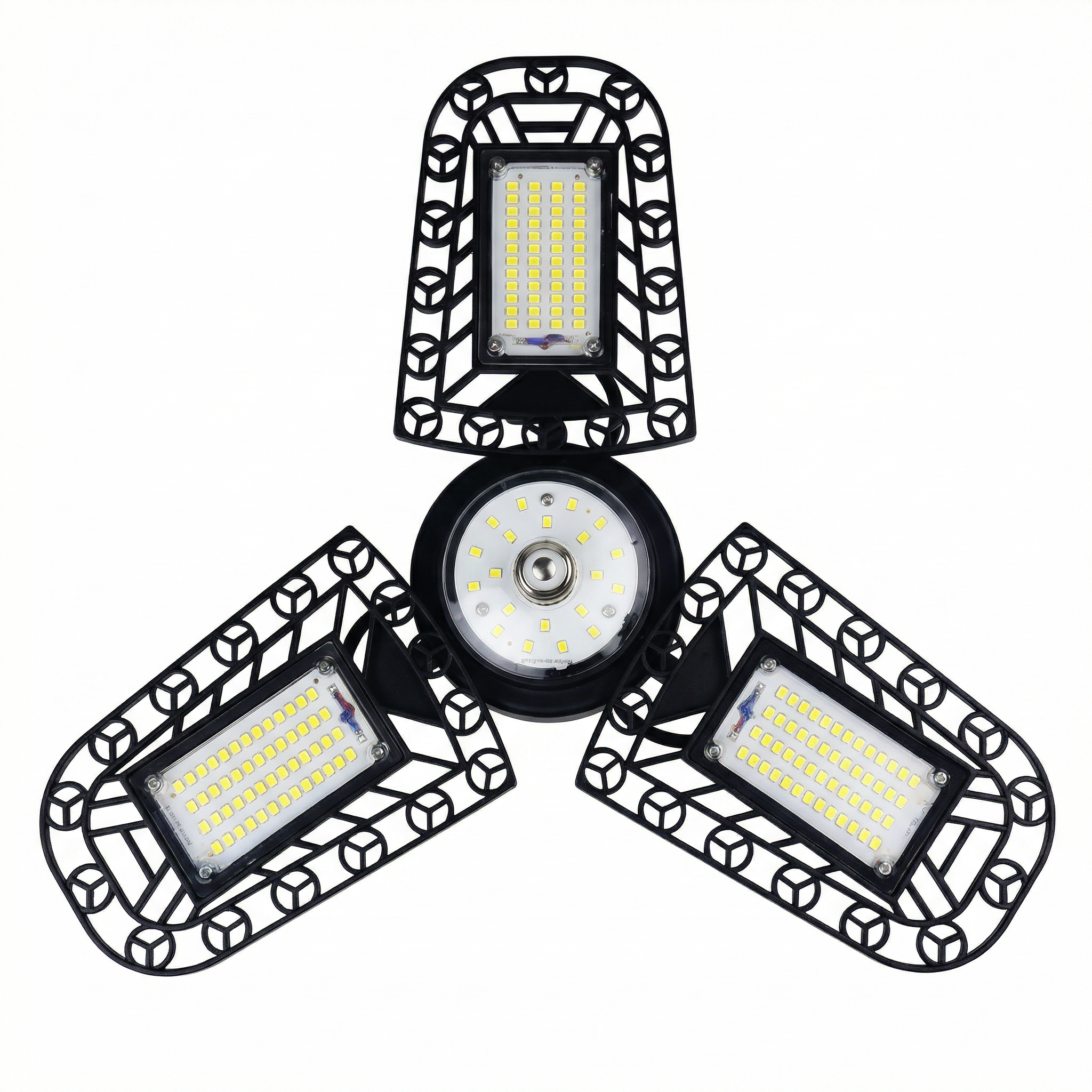

LED Deformable Lamp (3-Panel)
GGL-DAL-80W
High-brightness 80W 3-panel deformable LED garage lamp with E26/E27 base. Adjustable panels with folding angle up to 120° for omnidirectional illumination.
80W
Wattage
130 LPW
Efficacy
2700–6500K
CCT
> 80
CRI
Key Features
Construction
Pure aluminum housing (PC+AL). Deformable 3-panel design with adjustable panels folding up to 120°. 120° beam angle, omnidirectional regulation. Housing color: Black + White. Cover: Clear/Frosted.
Electrical
Input Voltage: AC100-277V 50/60Hz. 0-10V Dimmable. Surge voltage: 2000V. LED source: 216pcs Epistar SMD 2835 0.5W. Lumen output: >10,400 LM.
Applications
Warehouse, Garage, Workshop and similar applications.
Installation
E26/E27 or E39/E40 screw-in base. Direct replacement for existing lamp holders. Bypass ballast/ignitor and connect directly to AC 100-277V.
Listing
UL (E478324), CE, RoHS, FCC, PSE.
Warranty
5 years warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-DAL-80WX9F-CC | 80W | 80W | > 10,400 lm (130 lm/W) |
Specifications
Technical Details
CCT
2700K–6500K
Efficacy
130 lm/W
CRI
> 80
Input Voltage
AC100-277V 50/60Hz
Operating Temp
-40°C to 55°C
IP Rating
IP64
Certifications
UL, CE, RoHS, FCC, PSE
Dimming
0-10V
Power Factor
> 0.9
Base
E26/E27 or E39/E40
Surge Protection
2000V
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-DAL-80WX9F-CC | DAL 3-Panel Deformable Lamp, 80W, E26/E27 or E39/E40 base, 130lm/W, 2700K-6500K, 0-10V Dimmable |
Dimensions
Physical Dimensions
Dimension Drawing
Dimensions Table
| Size / Model | Length (L) | Width (W) | Height (H) |
|---|---|---|---|
| 80W | Ø13.31" (338mm) | Ø13.31" (338mm) | 4.53" (115mm) |
Installation
Installation Instructions
1
Switch off power to the luminaire.
2
Remove old ballast or disconnect from existing lamp holder. Dispose of ballast per local environmental laws.
3
Remove existing lamps.
4
Bypass the ballast/ignitor and connect the lamp-holder wires directly to AC 100-277V, 50/60Hz. Ensure proper grounding.
5
Screw in new bulb into the lamp-holder firmly.
6
Switch on power.
Mounting Options
Screw-In Base (E26/E27)
Direct screw-in replacement for standard medium base lamp holders.
Mogul Base (E39/E40)
Screw-in replacement for mogul base lamp holders in high-bay applications.
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| GGL-DAL-80WX9F-CC | 22.0" × 18.1" × 15.4" (560 × 460 × 390mm) | 18 pcs | 44.1 lbs (20 kg) | — |
