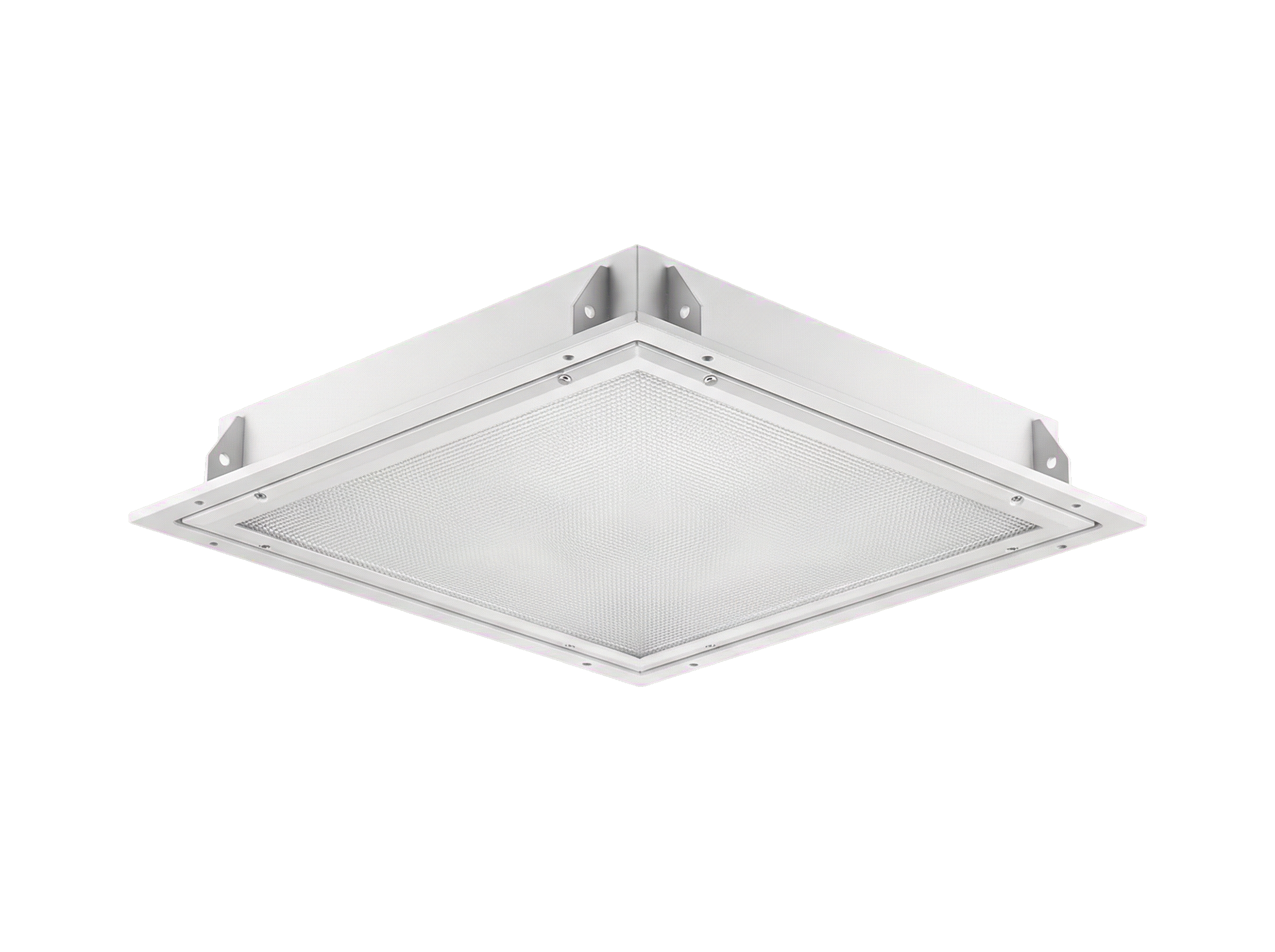

LED Gas Station Canopy Light

GGL-TCP1515-150W-C-H-TCP

High-output LED canopy light designed for gas station and fuel station canopy applications. IP65 rated with wattage and CCT selectable.

100–150W Wattage

>130 LPW Efficacy

3 Selectable CCT

IP65 IP Rating

Key Features

Construction

Die-cast aluminum housing with prismatic tempered glass lens. IP65 rated for wet locations. Recessed canopy mount design.

Electrical

Input Voltage: 120-277VAC, 50/60Hz. 0-10V dimming. Power factor ≥ 0.9, THD < 20%.

Applications

Gas stations, fuel stations, service stations, covered parking, and commercial canopy areas.

Listing

ETL listed. DesignLights Consortium (DLC) 5.1. IP65 rated.

Warranty

5-year limited warranty.

Performance Data

Configurations

Model	Size	Wattage	Lumens
GGL-TCP1515-150W-C-H-TCP	Standard	100W / 130W / 150W	13,000 / 16,900 / 19,500 lm

Specifications

Technical Details

CCT 3500K / 4000K / 5000K (Switchable)

Efficacy > 130 LPW

CRI > 80

Input Voltage 120–277VAC, 50/60Hz

Dimming 0-10V

IP Rating IP65

Operating Temp -40°C to 50°C

Lifespan 50,000 hrs (L70)

Certifications ETL, DLC 5.1

Warranty 5 Years

Ordering Information

Model	Description
GGL-TCP1515-150W-C-H-TCP	Gas Station Canopy Light, Wattage Adjustable 100W/130W/150W, CCT 3500K/4000K/5000K, IP65

Installation

Installation Instructions

Mounting Options

Recessed Canopy Mount

Recessed into canopy ceiling with mounting brackets.

Logistics

Packing Information

Model	Carton Size	Qty / Carton	Gross Weight	Pallet Qty
GGL-TCP1515-150W-C-H-TCP	17.3 × 12 × 12 in	1 pc	23.06 lbs	—
