Specification Sheet
gogreenledinternational.com
DLC PremiumETL Listed5-Year Warranty0-10V DimmingCCT Selectable
Indoor Lighting

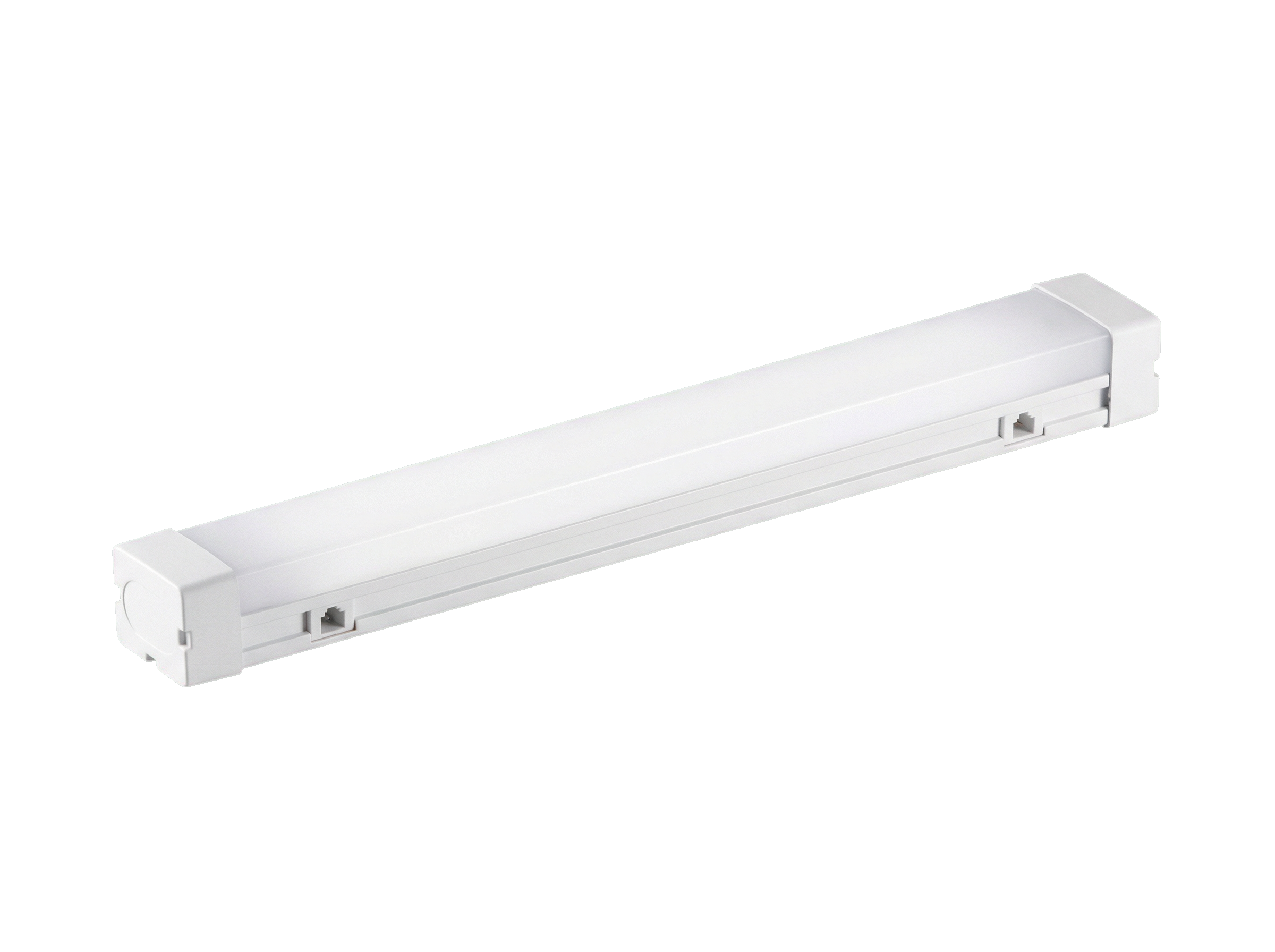

LED Linear Strip Light
GGL-ST03

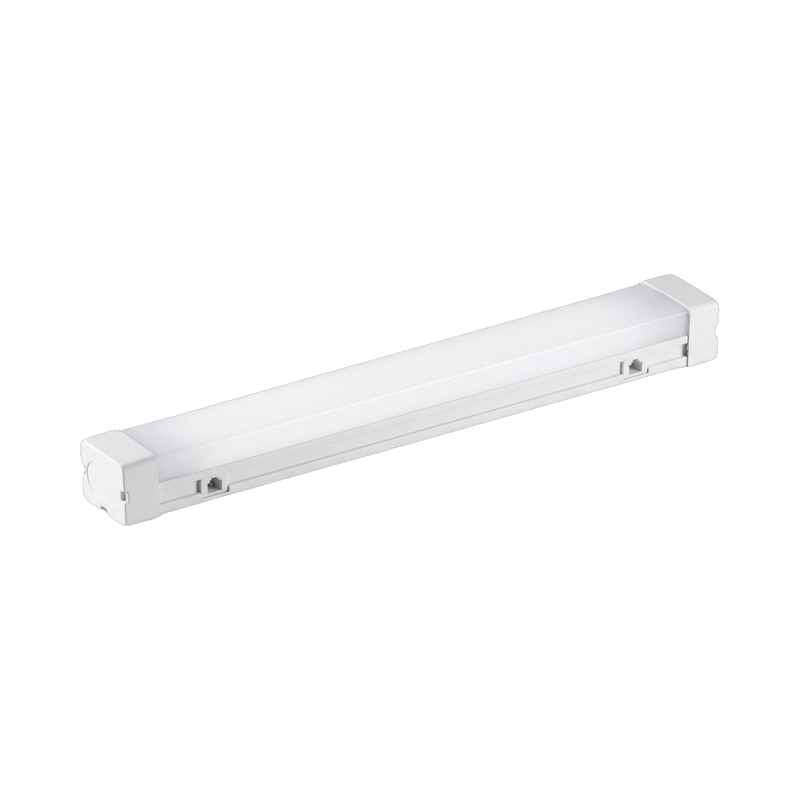

Linkable LED linear strip light available in 4FT and 8FT lengths. CCT and wattage selectable with optional microwave sensor and emergency driver.
24–90W
Wattage
130 LPW
Efficacy
3 Selectable
CCT
> 80
CRI
Key Features
Construction
Steel housing with frosted polycarbonate lens. Linkable design for continuous row installations. Surface mount or suspension mount.
Electrical
Input Voltage: 120-277VAC, 50/60Hz. 0-10V dimming. Power factor ≥ 0.9, THD < 20%.
Sensor
Optional microwave sensor (GGL-ST03-MS) for occupancy-based control.
Applications
Warehouses, workshops, garages, stairwells, corridors, and general commercial spaces.
Listing
ETL listed. DesignLights Consortium (DLC) 5.1.
Warranty
5-year limited warranty.
Performance Data
Configurations
| Model | Size | Wattage | Lumens |
|---|---|---|---|
| GGL-ST03-4FT40WS-3545K | 4FT | 24W / 32W / 40W | Up to 5,200 lm |
| GGL-ST03-4FT40WS-3545K-EM | 4FT (Emergency) | 24W / 32W / 40W | Up to 5,200 lm |
| GGL-ST03-8FT90WS-3545K | 8FT | 64W / 75W / 90W | Up to 11,700 lm |
Specifications
Technical Details
CCT
3500K / 4000K / 5000K (Switchable)
Efficacy
Up to 130 LPW
CRI
> 80
Input Voltage
120–277VAC, 50/60Hz
Dimming
0-10V
Operating Temp
-20°C to 50°C
Lifespan
50,000 hrs (L70)
Certifications
ETL, DLC 5.1
Warranty
5 Years
Ordering Information
| Model | Description |
|---|---|
| GGL-ST03-4FT40WS-3545K | 4FT Linear Strip, Power Switchable 24W/32W/40W, CCT 3500K/4000K/5000K |
| GGL-ST03-4FT40WS-3545K-EM | 4FT Linear Strip with Emergency Driver, Power Switchable 24W/32W/40W |
| GGL-ST03-8FT90WS-3545K | 8FT Linear Strip, Power Switchable 64W/75W/90W, CCT 3500K/4000K/5000K |
Sensor Solutions
GGL-ST03-MS
Microwave Sensor
Installation
Installation Instructions
Mounting Options
Surface Mount
Mount directly to ceiling surface.
Suspension Mount
Hang from ceiling using suspension kit.
Linkable
Connect multiple fixtures end-to-end for continuous rows.
Accessories
Available Accessories
Microwave Sensor
GGL-ST03-MS
Plug-in microwave occupancy sensor
Remote Control
ST03-Remote
Wireless remote for sensor settings
Junction Box Cover
ST03 Junction Box Cover
Junction box cover plate
Linkable Connector
ST03 Linkable Connector
Connector for linking multiple fixtures
Suspension Kit
ST03 Suspension Kit
Cable suspension kit for pendant mounting
Logistics
Packing Information
| Model | Carton Size | Qty / Carton | Gross Weight | Pallet Qty |
|---|---|---|---|---|
| GGL-ST03-4FT | 47 × 14.57 × 3.94 in | 4 | — | — |
| GGL-ST03-8FT | 94 × 14.9 × 3.9 in | 4 | — | — |
