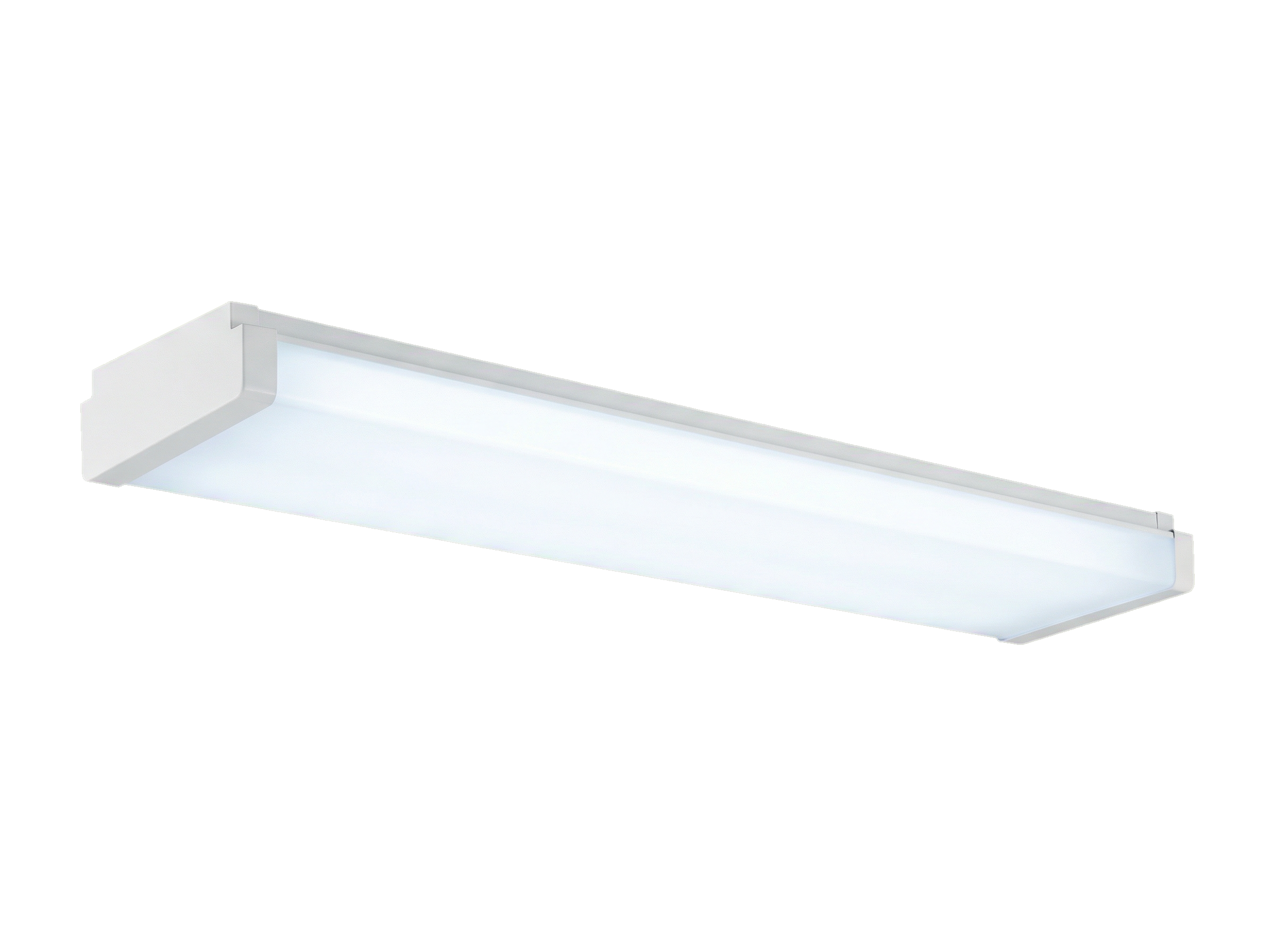

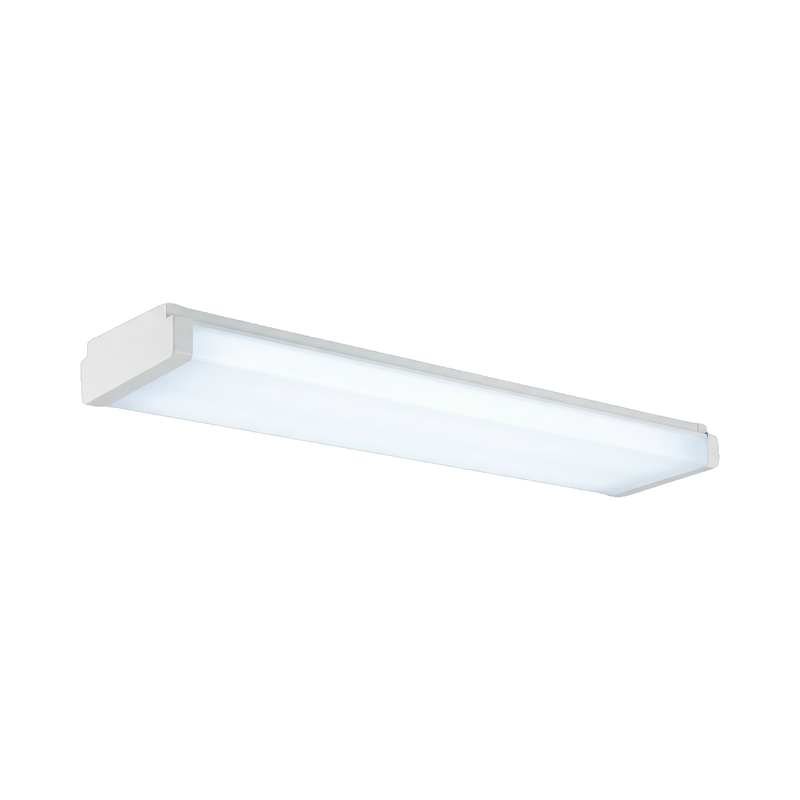

LED Wraparound Light

GGL-WL01

4-foot LED wraparound fixture with frosted acrylic lens for uniform, glare-free illumination. Wattage and CCT selectable.

20–40W Wattage

130 LPW Efficacy

4 Selectable CCT

> 80 CRI

Key Features

Construction

White steel housing with wraparound frosted acrylic lens. Slim profile for surface mount ceiling installation.

Electrical

Input Voltage: 120-277VAC, 50/60Hz. 0-10V dimming. Power factor ≥ 0.9, THD < 20%.

Applications

Offices, corridors, stairwells, utility rooms, laundry rooms, and general commercial spaces.

Listing

ETL listed. DesignLights Consortium (DLC) listed.

Warranty

5-year limited warranty.

Performance Data

Configurations

Model	Size	Wattage	Lumens
GGL-WL01-45PDNC	4FT	20W / 30W / 40W	Up to 5,200 lm

Specifications

Technical Details

CCT 3500K / 4000K / 5000K / 5700K (Switchable)

Efficacy Up to 130 LPW

CRI > 80

Input Voltage 120–277VAC, 50/60Hz

Dimming 0-10V

Operating Temp -20°C to 50°C

Lifespan 50,000 hrs (L70)

Certifications ETL, DLC

Warranty 5 Years

Ordering Information

Model	Description
GGL-WL01-45PDNC	4FT Wraparound, Power Switchable 20W/30W/40W, CCT 3500K/4000K/5000K/5700K

Installation

Installation Instructions

Mounting Options

Surface Mount

Mount directly to ceiling surface using included hardware.

Logistics

Packing Information

Model	Carton Size	Qty / Carton	Gross Weight	Pallet Qty
GGL-WL01-45PDNC	48 × 11.8 × 6.3 in	4	22.05 lbs	—
